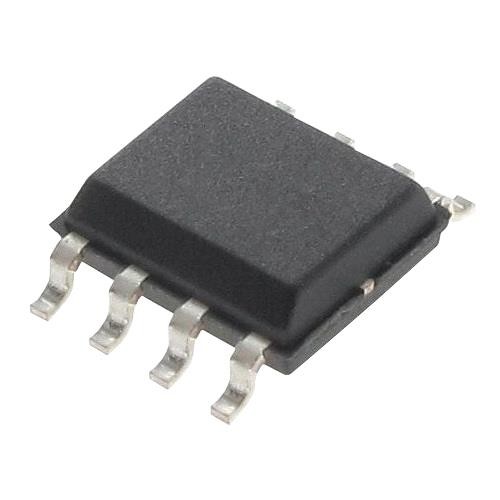

DPA425GN DC DC Power Conversion IC (16V to 75V Input, Up to 100W)

The DPA425GN is an integrated power conversion IC from the DPA Switch family designed for high efficiency DC DC converter applications. It supports power supply designs with input voltages from 16V to 75V DC and applications requiring power levels up to 100W. The device integrates a high voltage power MOSFET with control and protection circuitry, making it suitable for compact distributed power, telecom and industrial power supply designs.

Key Features -

• Integrated DC DC power conversion IC

• DPA Switch family device

• Supports 16V to 75V DC input applications

• Suitable for power designs up to 100W

• Integrated high voltage power MOSFET

• Integrated switching control circuitry

• Built in protection functions

• Reduces external component count

• Suitable for isolated and non isolated converter designs

• Compact surface mount package

Specifications -

• Part Number: DPA425GN

• Product Type: DC DC Power Conversion IC

• Device Family: DPA Switch

• Input Voltage Application Range: 16V to 75V DC

• Power Capability: Up to 100W, design dependent

• Integrated Switching Device: Power MOSFET

• Converter Type: DC DC

• Control Function: Integrated Switching Controller

• Mounting Type: SMD

• Application: DC DC Power Supply Design

Applications -

• DC DC power converters

• Distributed power architectures

• Telecom power supplies

• Industrial power systems

• Embedded power supplies

• Network equipment

• Communication equipment

• Intermediate bus converters

• Isolated power supplies

• Electronic power conversion systems
