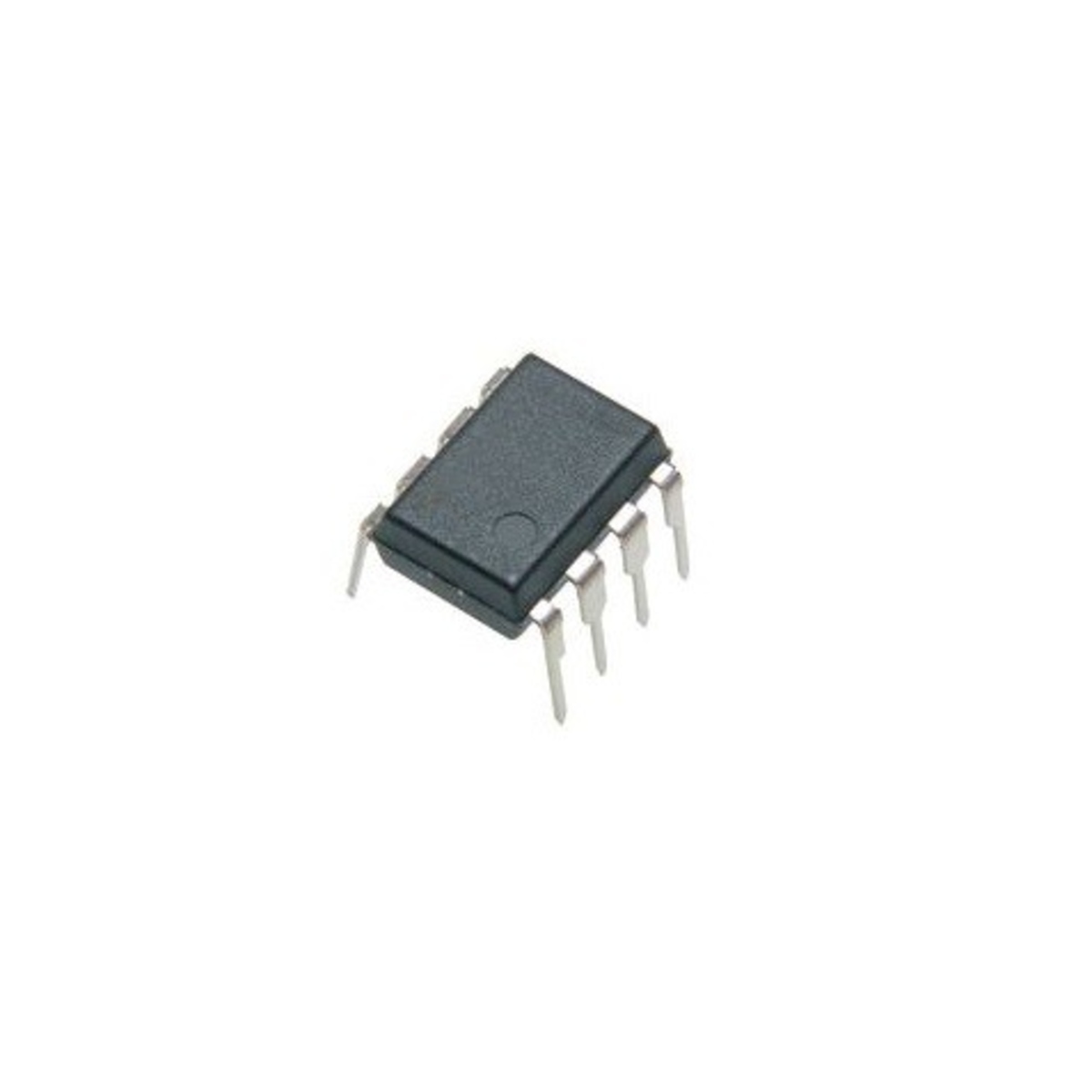

DS275 Line Powered RS232 Transceiver IC (DIP 8, Low Power)

The DS275 is a low power RS232 transceiver IC originally developed by Dallas Semiconductor. It provides serial communication between RS232 interfaces and CMOS or TTL logic circuits. Its power saving transmitter design uses the incoming RS232 receive line to help generate negative transmit voltage, reducing static power consumption in battery powered systems. It is suitable for compact serial communication interfaces where low power consumption is important.

Key Features -

• Integrated RS232 transmitter and receiver

• Low power CMOS design

• Power saving transmitter architecture

• Compatible with RS232 signal levels

• Converts RS232 input signals to CMOS or TTL logic levels

• Transmitter voltage level can be supported by a 5V to 12V driver supply

• Designed for battery powered and low power serial communication systems

Specifications -

• Part Number: DS275

• Manufacturer: Dallas Semiconductor, now part of Analog Devices

• Component Type: Line Powered RS232 Transceiver

• Communication Interface: RS232

• Logic Supply Voltage: 4.5V to 5.5V

• Transmitter Driver Supply: 4.5V to 13V, with VDRV equal to or greater than VCC

• RS232 Receiver Input Range: Negative 15V to positive 15V

• Package: 8 Pin DIP

• Operating Temperature Range: 0 C to 70 C

Applications -

• Battery powered serial communication systems

• Portable electronic equipment

• Remote monitoring devices

• Low power data communication interfaces

• Embedded systems with RS232 connectivity

• Computer and instrument serial interfaces
