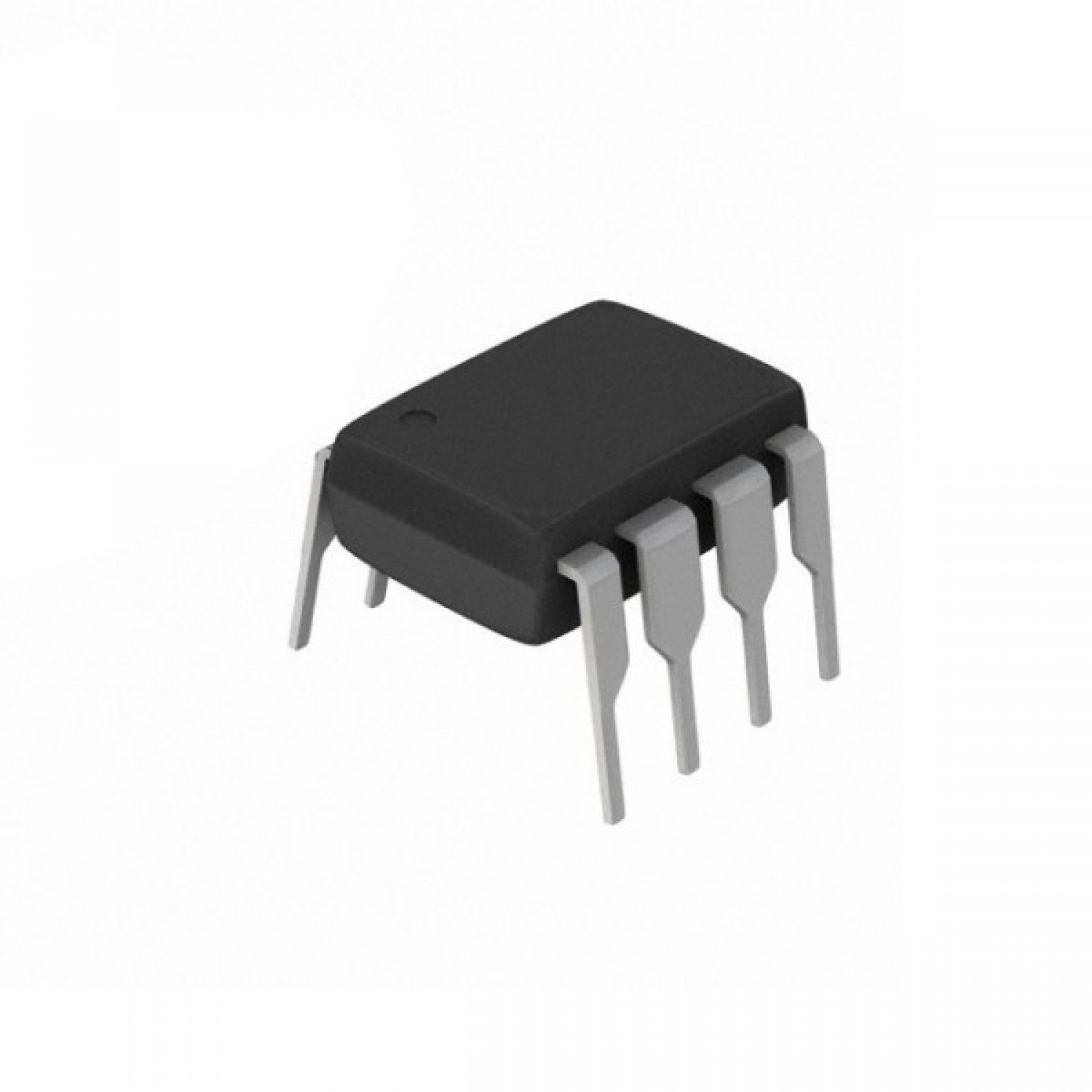

DS1232 DIP Supervisory Reset IC Watchdog Timer Controller (DS1232 Reset IC)

The DS1232 is a microprocessor supervisory reset IC designed to monitor system power and processor activity to ensure reliable operation of microcontroller and microprocessor-based systems. It combines power supply monitoring, watchdog timer functionality, and push-button reset control in a single device, making it ideal for embedded systems, industrial controllers, communication equipment, and computer peripherals.

The IC helps prevent system lockups and improper operation caused by power fluctuations, software failures, or processor malfunctions.

Key Features -

• Microprocessor supervisory reset IC

• Integrated watchdog timer

• Automatic power supply monitoring

• Push-button reset input support

• Power-fail detection capability

• Low power consumption

• DIP through-hole package

Specifications -

• Product type - Supervisory Reset IC

• Model - DS1232

• Function - Reset Controller and Watchdog Timer

• Supply monitoring - Precision Voltage Supervision

• Watchdog timer - Integrated

• Reset output - Automatic System Reset

• Manual reset - Push-Button Reset Support

• Package type - DIP

• Mounting type - Through Hole Mount

• Application - System Monitoring and Protection

Applications -

• Microcontroller systems

• Embedded electronics

• Industrial automation equipment

• Communication systems

• Computer peripherals

• Instrumentation devices

• Data acquisition systems
