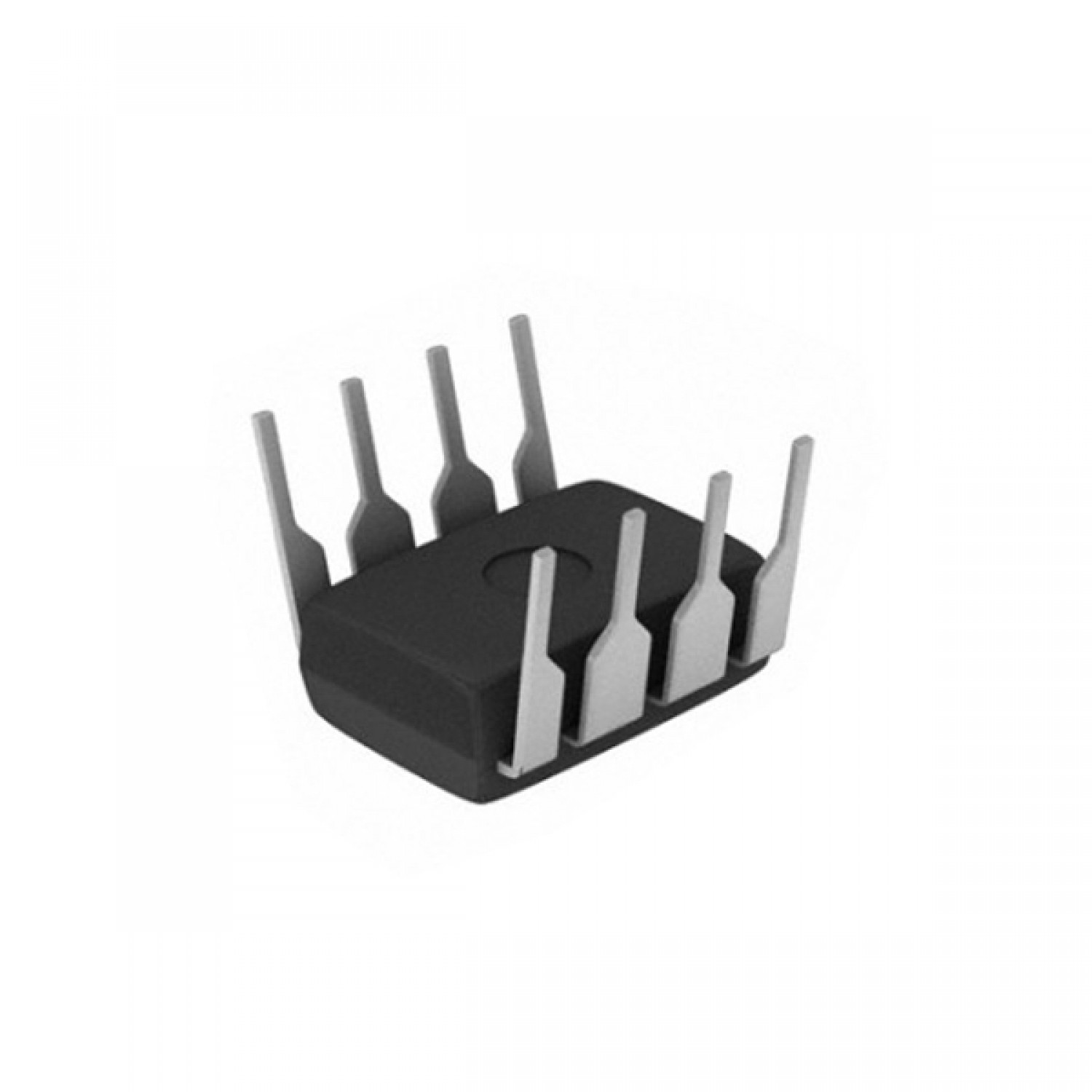

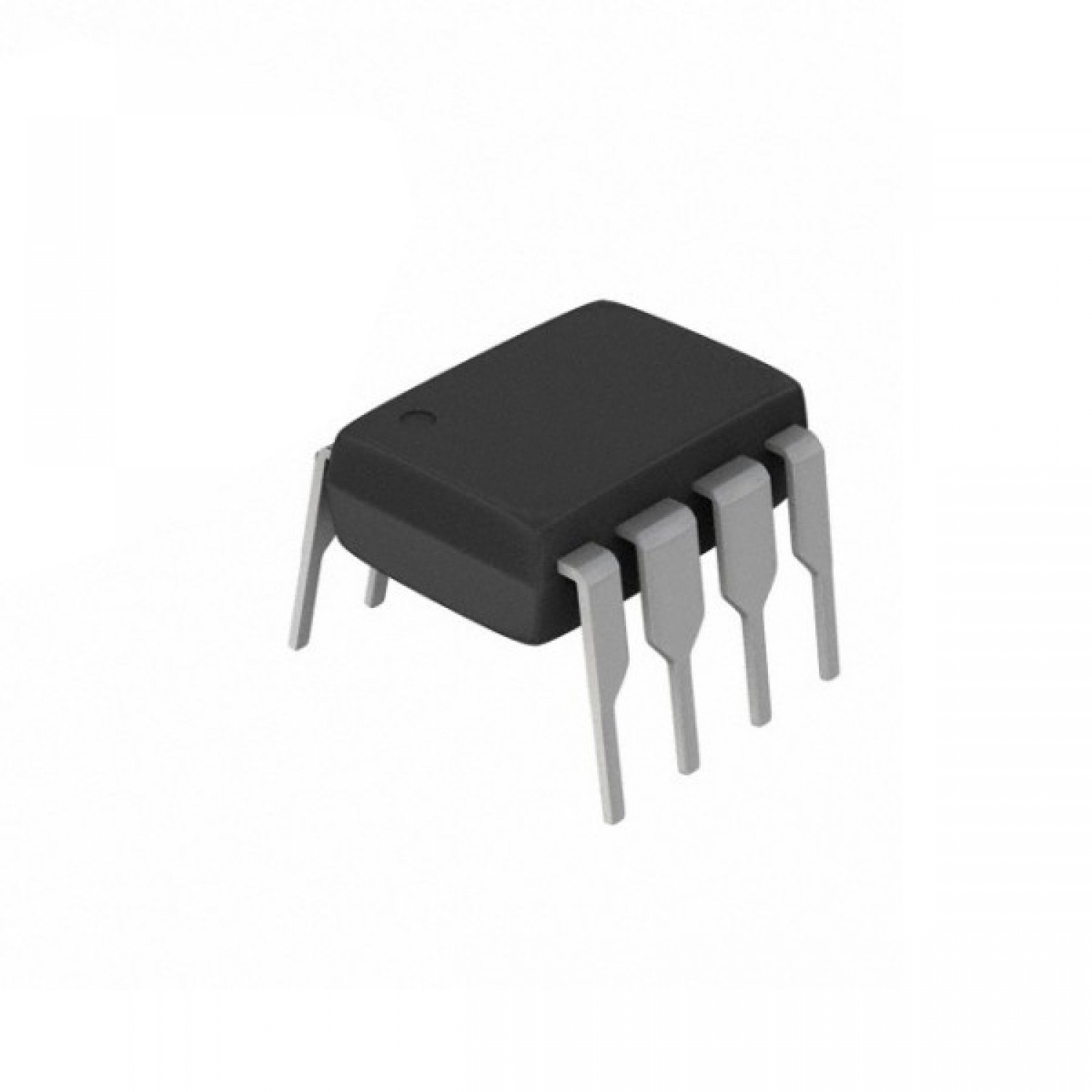

DS1232 MicroMonitor Chip DIP-8 (DS1232 Reset and Watchdog Supervisor IC)

The DS1232 MicroMonitor Chip is a microprocessor supervisory IC designed to provide reliable system monitoring, watchdog timing, and power-on reset functions for microcontroller and microprocessor-based systems. It helps prevent system lockups, improper startup conditions, and power-related failures, ensuring stable operation in embedded and industrial applications.

Key Features -

• Integrated watchdog timer

• Automatic power-on reset function

• Monitors system supply voltage

• Push-button reset input support

• Prevents processor lockup conditions

• Reliable system supervision

• DIP-8 through-hole package

Specifications -

• Product type - Microprocessor supervisor IC

• Model - DS1232

• Package type - DIP-8

• Mounting type - Through Hole Mount

• Functions - Watchdog Timer, Reset Controller, Voltage Monitoring

• Reset type - Automatic and Manual Reset Support

• Supply voltage monitoring - Yes

• Watchdog function - Integrated

• Application type - System supervision and protection

• Material - Semiconductor integrated circuit

• Additional features - Improves system reliability and protects against software and power failures

Applications -

• Microcontroller-based systems

• Embedded electronic systems

• Industrial automation equipment

• Data acquisition systems

• Communication devices

• Control systems

• Development and prototyping projects
