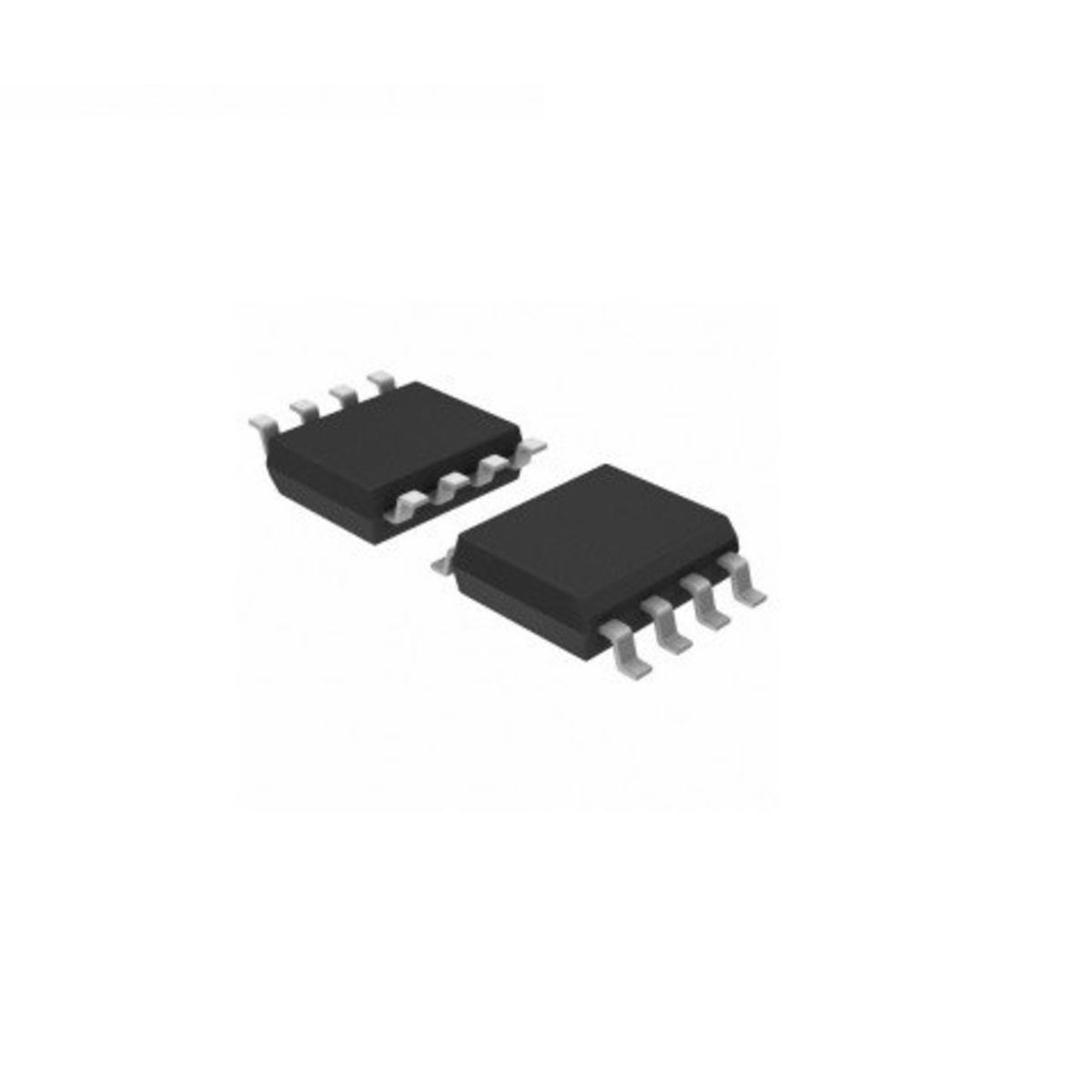

DS1232L SOIC-8 MicroMonitor Reset and Watchdog Timer IC (DS1232L)
The DS1232L is a MicroMonitor reset and watchdog timer IC designed to monitor system power supply and processor activity in microcontroller and embedded systems. It provides automatic reset control, watchdog timing, and power supply monitoring to improve system reliability and prevent software lockups or unstable operation.
Key Features -
- Integrated watchdog timer and reset controller
- Automatic power supply monitoring
- Processor reset generation
- SOIC-8 surface mount package
- Reliable system protection and monitoring
Specifications -
- IC type / Product type - MicroMonitor Reset and Watchdog Timer IC
- Logic family / Component type - System Supervisor IC
- Package type - SOIC-8 SMD IC
- Supply voltage - Approx 4.5V to 5.5V DC
- Input voltage - CMOS and TTL compatible logic input levels
- Output voltage - Reset output compatible with digital systems
- Current rating - Low power monitoring operation
- Frequency / propagation delay - Watchdog timeout interval controlled internally
- Operating temperature - Approx 0 to +70 degree C
- Additional important specifications - Automatic reset generation, watchdog timer support, push button reset input, power fail detection capability, active reset output
Applications -
- Microcontroller reset circuits
- Embedded system monitoring
- Industrial automation systems
- Processor watchdog protection
- Digital control systems
Pinout Configuration -
- Pin 1 - Push button reset input
- Pin 2 - Watchdog strobe input
- Pin 3 - Reset output pin
- Additional pins - Power monitor input, watchdog control pins, supply voltage pin, ground pin
