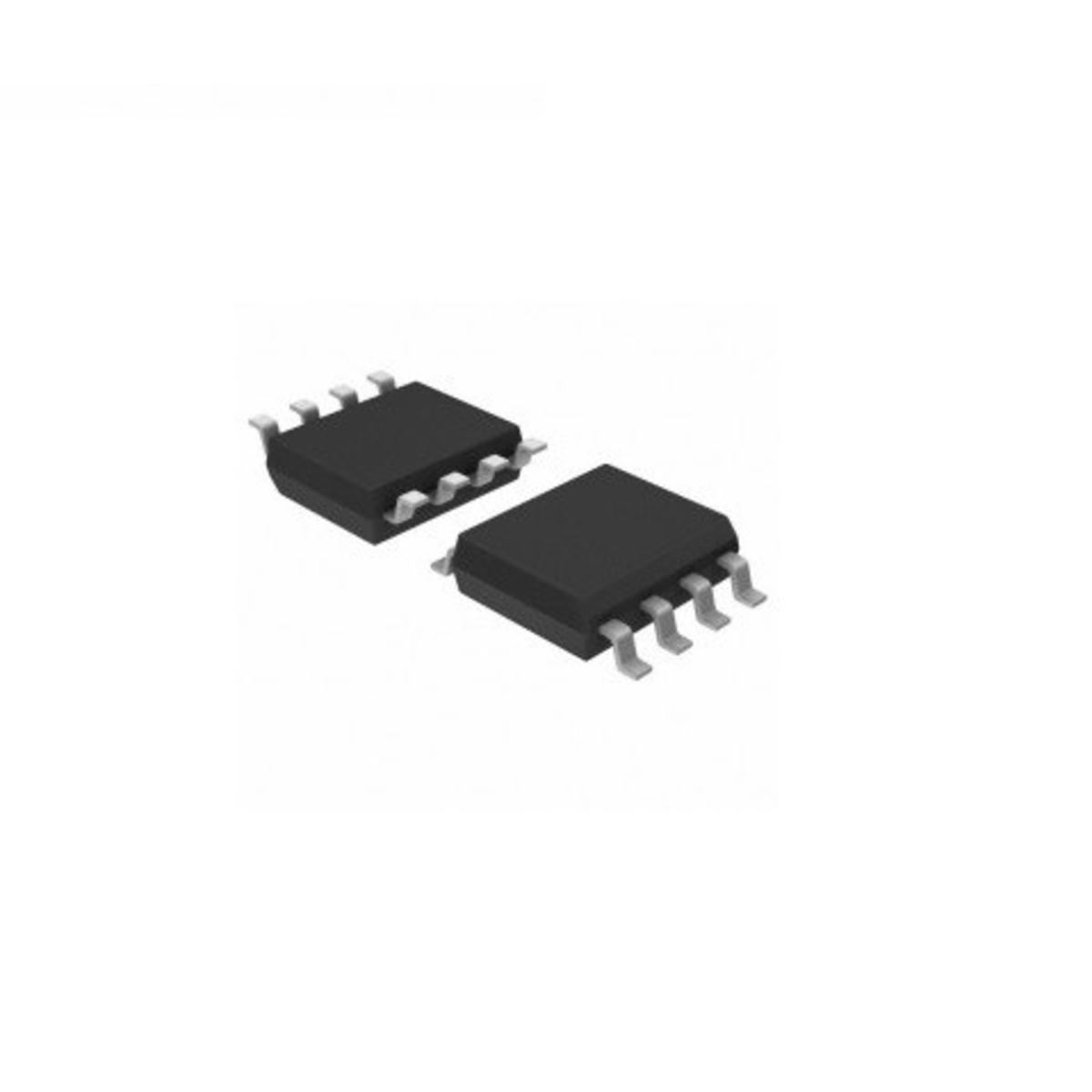

DS1307Z+ SOIC-8 Real Time Clock IC (DS1307 RTC Clock IC)

The DS1307Z+ is a low-power Real Time Clock (RTC) integrated circuit designed to maintain accurate time and date information in electronic systems. Featuring an I2C serial interface and battery backup support, this IC keeps track of seconds, minutes, hours, day, date, month, and year information even during power interruptions. Housed in a compact SOIC-8 package, it is ideal for embedded systems, data logging devices, clocks, and automation applications.

Key Features -

• Real Time Clock (RTC) functionality

• I2C serial communication interface

• Battery backup support for time retention

• Maintains time and calendar information

• Automatic leap-year compensation

• Low power consumption

• Compact SOIC-8 package

Specifications -

• Product type - Real Time Clock IC

• Model - DS1307Z+

• RTC type - Serial Real Time Clock

• Package type - SOIC-8

• Mounting type - Surface Mount Device (SMD)

• Communication interface - I2C

• Time format - 12-hour and 24-hour modes

• Backup support - External battery backup

• Timekeeping functions - Seconds, minutes, hours, day, date, month, and year

• Additional features - Leap-year correction, non-volatile timekeeping, and low-power operation

Applications -

• Digital clocks and calendars

• Data logging systems

• Embedded electronic devices

• Industrial automation equipment

• Time-stamped measurement systems

• Arduino and microcontroller projects

• Home automation systems
