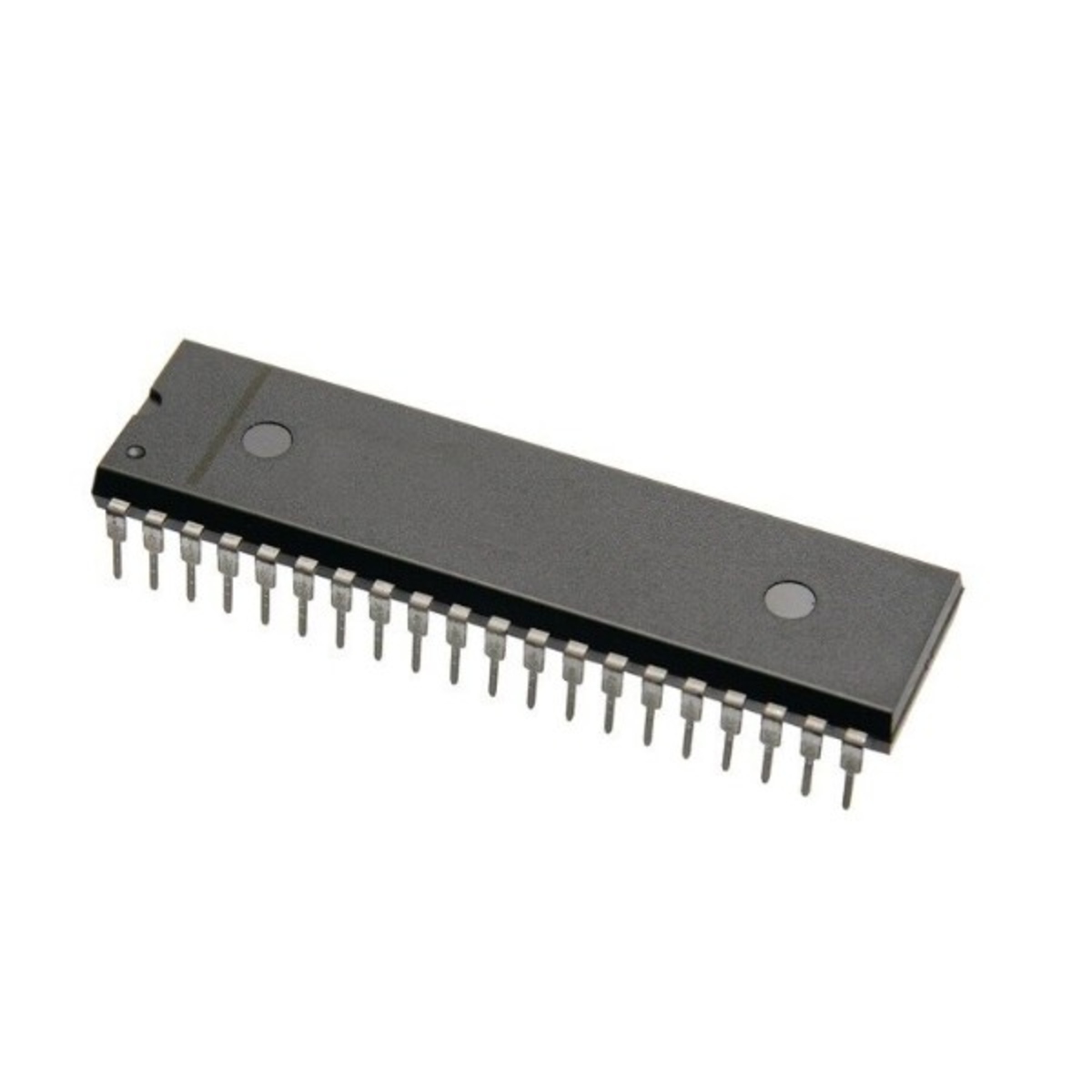

DSPIC30F4013-30I/P 16-Bit Digital Signal Controller DIP-40 (Microchip DSC, DSP Microcontroller, Motor Control MCU)

The dsPIC30F4013-30I/P is a high-performance 16-bit Digital Signal Controller from Microchip that combines the computational capabilities of a Digital Signal Processor (DSP) with the flexibility of a microcontroller. Designed for motor control, industrial automation, power conversion, robotics, and embedded signal processing applications, it delivers up to 30 MIPS performance along with advanced peripherals and real-time control features.

Key Features -

• 16-bit Digital Signal Controller architecture

• Up to 30 MIPS processing performance

• Integrated DSP engine

• Flash program memory

• High-speed ADC module

• Advanced PWM peripherals for motor control

• Multiple communication interfaces

• DIP-40 through hole package

Specifications -

• Product type - Digital Signal Controller IC

• Model - dsPIC30F4013-30I/P

• Manufacturer - Microchip

• Architecture - 16-Bit DSC

• Package type - DIP-40

• Mounting type - Through Hole Mount

• Program memory - 48 KB Flash

• Data EEPROM - 1 KB

• RAM - 2 KB

• Maximum performance - 30 MIPS

• ADC - 12-Bit Analog-to-Digital Converter

• Operating voltage - 2.5V to 5.5V

• Operating temperature - Industrial temperature range

Applications -

• AC and DC motor control

• Industrial automation systems

• Robotics and motion control

• Power inverters and converters

• Digital signal processing applications

• Smart energy systems

• Embedded control systems
