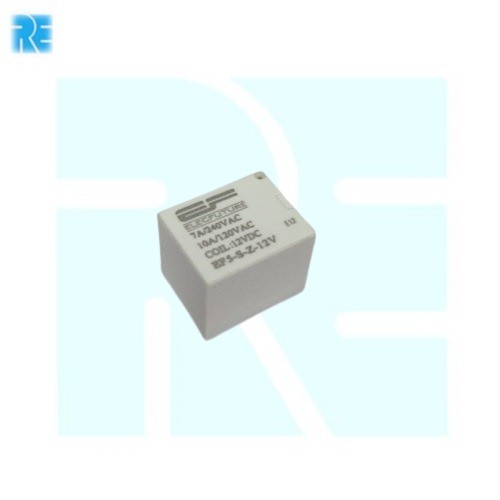

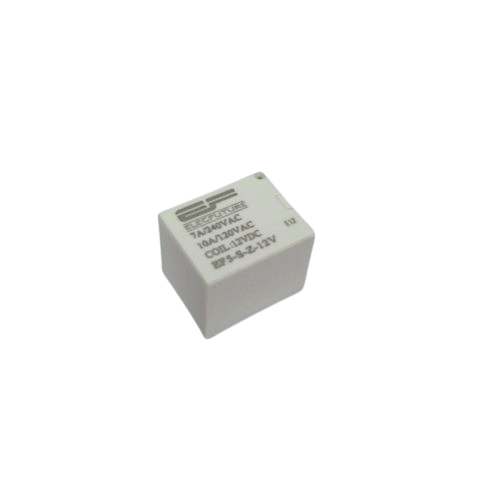

EF5-S-Z-12V Sugar Cube Relay 7A 12VDC 1CO PCB Power Relay (Electromagnetic Relay)

The EF5-S-Z-12V Sugar Cube Relay is a compact electromagnetic PCB power relay designed for switching electrical loads in industrial automation, power supplies, home automation, embedded systems, and general-purpose control circuits. It features a 12V DC coil, 1CO (SPDT - Single Pole Double Throw) contact configuration, and a 7A contact rating, providing reliable electrical isolation and dependable switching performance.

Its compact sugar cube package and PCB mount design make it ideal for space-constrained electronic equipment and control boards.

Key Features -

• Compact sugar cube PCB power relay

• 12V DC coil operation

• 7A contact switching capacity

• 1CO (SPDT) contact configuration

• Low power coil consumption

• Reliable electromagnetic switching

• Durable silver alloy contacts

• Easy PCB mounting

Specifications -

• Product Type: Electromagnetic PCB Power Relay

• Model: EF5-S-Z-12V

• Relay Type: Sugar Cube Relay

• Coil Voltage: 12V DC

• Contact Configuration: 1CO (SPDT - Single Pole Double Throw)

• Contact Rating: 7A

• Mounting Type: PCB Mount

• Contact Material: Silver Alloy Contacts

• Coil Type: Non-Latching DC Coil

• Insulation Resistance: High Insulation Performance

• Additional Features: Compact size, reliable switching, low coil power consumption, long electrical life

Applications -

• Industrial automation systems

• Power supply switching

• Home automation equipment

• Embedded electronic systems

• Electrical control circuits

• Microcontroller-based switching

• Consumer electronic appliances

• DIY electronic projects
