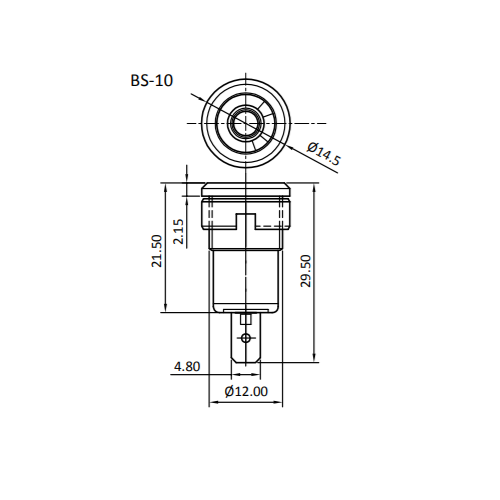

ELCOM BS10-07GN Green 4mm Banana Female Socket Panel Mount Connector (10A 250V AC)

The ELCOM BS10-07GN Green 4mm Banana Female Socket is a high-quality panel mount connector designed to provide a secure and reliable connection with standard 4mm banana plugs. It is widely used in laboratory equipment, test and measurement instruments, power supplies, educational kits, industrial control panels, and electronic projects.

Rated for 10A at 250V AC, the BS10-07GN features a durable insulated body and high-quality metal contacts that ensure low contact resistance and dependable electrical performance. The green colour allows easy polarity or signal identification in electrical and electronic systems.

Key Features -

• 4mm banana female socket for standard banana plugs

• Panel mount design for secure installation

• Green insulated body for polarity or signal identification

• Rated for 10A at 250V AC

• Durable insulated construction

• Low contact resistance for reliable conductivity

• Suitable for laboratory, industrial, and electronic applications

Specifications -

• Product Type: Banana Female Socket

• Model: BS10-07GN

• Brand: ELCOM International

• Socket Diameter: 4mm

• Connector Type: Female Banana Socket

• Mounting Type: Panel Mount

• Rated Current: 10A

• Rated Voltage: 250V AC

• Socket with Shutter: No

• Body Colour: Green

• Contact Resistance: 10 mOhm Maximum

• Insulation Resistance: 100 MOhm Minimum at 500V DC

• Dielectric Strength: 2kV AC for 1 Minute

Applications -

• Laboratory power supplies

• Test and measurement equipment

• Electronic workbenches

• Industrial control panels

• Educational electronics kits

• Battery charging systems

• Instrumentation equipment

• DIY electronic projects
