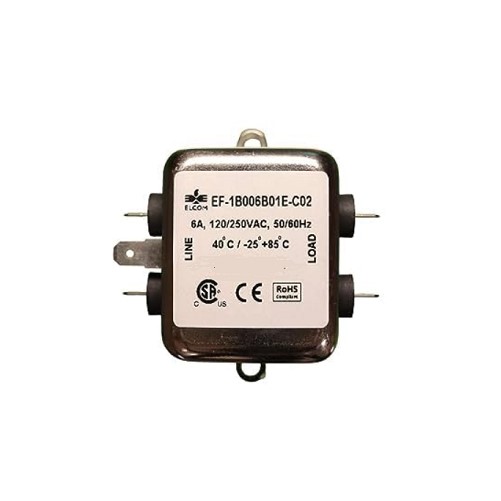

ELCOM EF-1B006B01E-C02 (EP-6-AP-CE) EMI/RFI Filter 6A 250V AC Chassis Mount Single Phase Power Line Filter

The ELCOM EF-1B006B01E-C02 (EP-6-AP-CE) is a single-phase chassis mount EMI/RFI power line filter designed to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) in AC mains-powered equipment. Rated for 6A at 250V AC, it helps reduce conducted electrical noise, improving the performance and electromagnetic compatibility (EMC) of electronic devices.

Certified to CE, CSA, and RoHS standards, this filter is suitable for industrial automation, medical equipment, instrumentation, power supplies, telecommunications equipment, and other electronic systems requiring effective mains noise suppression. Its compact chassis mount design and Fast-On or solder terminals allow easy installation in electrical enclosures.

Key Features -

• Single-phase EMI/RFI power line filter

• Rated for 6A at 250V AC operation

• Effective suppression of conducted EMI and RFI noise

• Chassis mount design for secure installation

• Fast-On or solder terminal connections

• CE, CSA, and RoHS compliant

• Suitable for industrial and electronic equipment

Specifications -

• Product Type: EMI/RFI Power Line Filter

• Model: EF-1B006B01E-C02 (EP-6-AP-CE)

• Brand: ELCOM

• Filter Type: Single-Phase EMI/RFI Filter

• Mounting Type: Chassis Mount

• Rated Voltage: 250V AC, 50/60Hz, Single Phase

• Rated Current: 6A

• Input Connection: Fast-On 6.3 × 0.8mm / Solder Type

• Output Connection: Fast-On 6.3 × 0.8mm / Solder Type

• Leakage Current: 2 × 0.3mA

• Maximum Voltage Drop: 1V

• Insulation Resistance: Minimum 300M Ohm at 500V DC (Phase & Neutral Shorted to Earth)

• High Voltage Test: 2kV AC for 60 Seconds (Phase & Neutral Shorted to Earth)

• Operating Temperature: 0C to +85C

• Compliance: CE, CSA, RoHS

Applications -

• Switch mode power supplies (SMPS)

• Industrial automation equipment

• Control panels and electrical cabinets

• Medical and laboratory equipment

• Test and measurement instruments

• Telecommunications equipment

• UPS and inverter systems

• Electronic and electrical equipment requiring EMI suppression
