Description

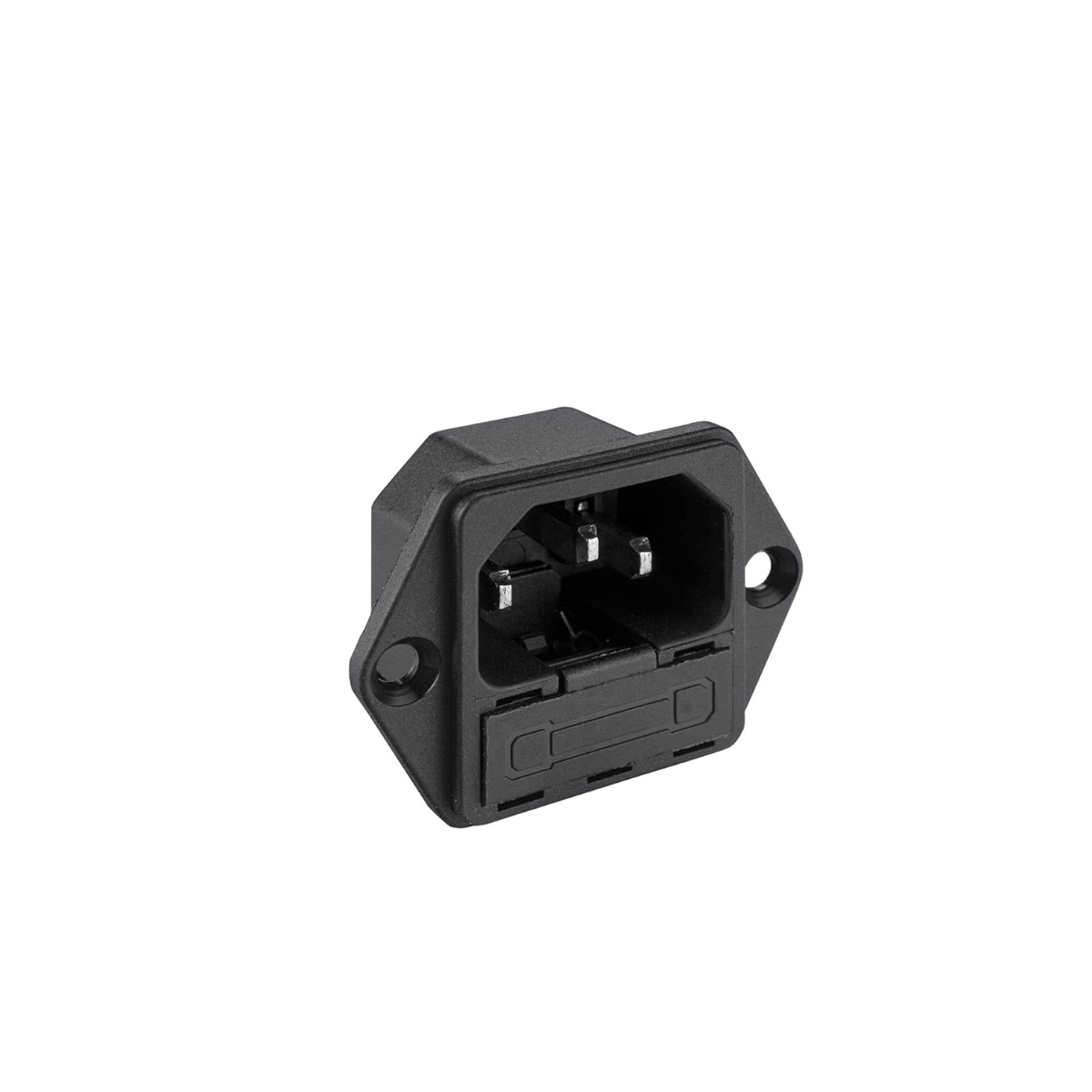

ELCOM EMI-21 Power Inlet With Fuse Holder
EL-16
Product Category : IEC INLET
V/A Rating: 10 Ampere 250 Volts AC
Contact Resistance (Initial): 20m ohms max.
Insulation Resistance At 500 V DC: 1000 M ohms min
H.V.Break Down Test (For 1-Minute): 2 KV AC
Contact Resistance (Initial): 10 m ohms Max
Body: Nylon-6, GF20%, V-2
Terminals: Brass, Tin/Nickel plating
Contacts: Copper Alloy, Tin/Nickel plating
Mounting: Panel, Screw-type
Terminals: Solder-type / Fast-On
Permissible Temp. With
Without Load: -25°C To 70°C
Permissible Temp. For Soldering: 270°C for 5 Sec. Max.
Additional Information
| Weight | 17.97 g |
|---|
