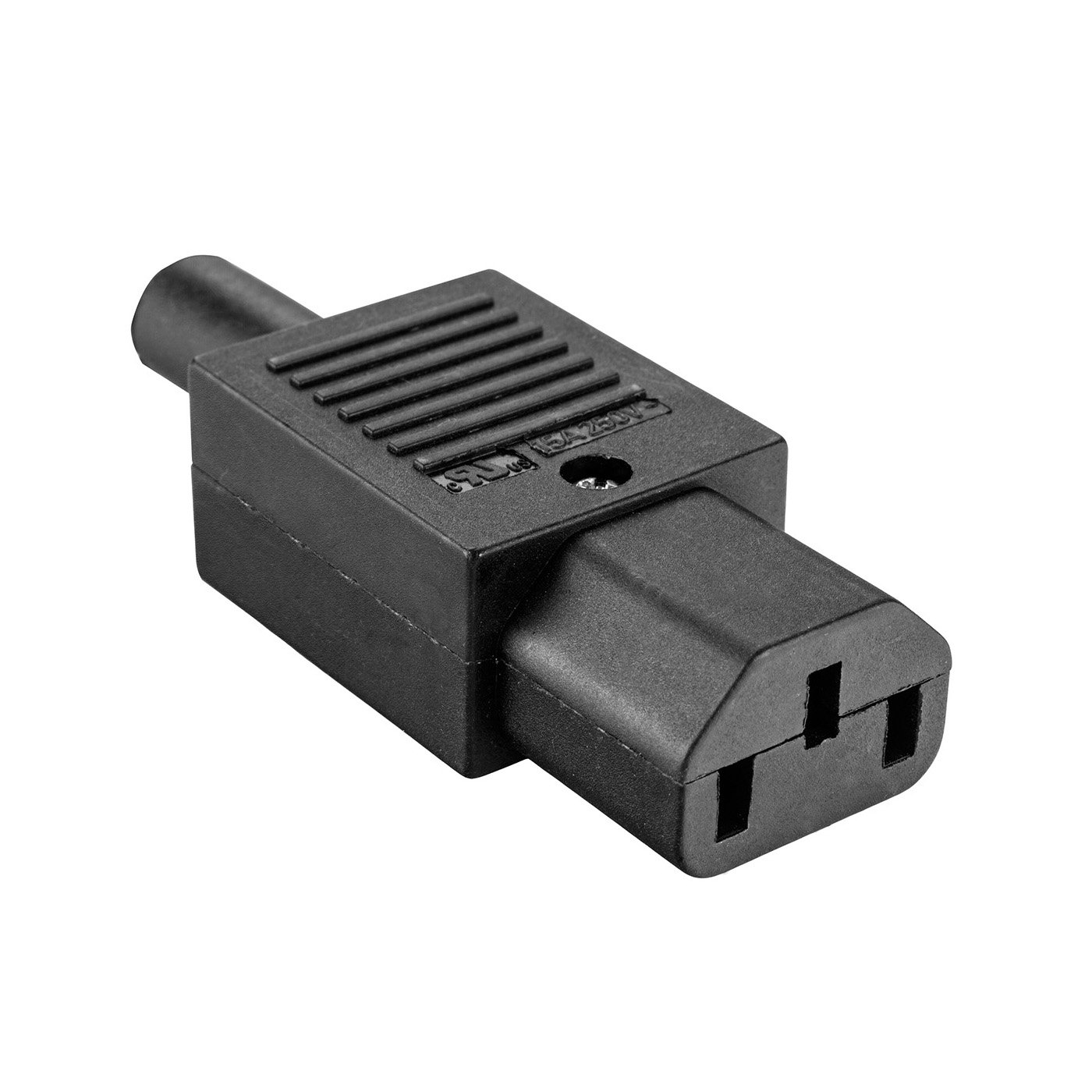

ELCOM EMO-40 / MC-12 Computer Plug Female Connector IEC AC Rewirable Female Connector (15A 250V)

The ELCOM EMO-40 / MC-12 Computer Plug Female Connector is a rewirable IEC female power connector designed for safe and reliable AC mains connections in computers, power supplies, laboratory equipment, industrial machinery, and electronic devices. It mates with standard IEC C14 panel power inlets, making it ideal for custom power cords and equipment servicing.

Rated for 15A at 250V AC, the connector features a durable insulated housing, secure screw-type wire terminals, and an integrated cable clamp for dependable electrical and mechanical performance. It complies with IEC safety standards and is suitable for professional and industrial applications.

Key Features -

• IEC female rewirable power connector

• Compatible with IEC C14 male panel mount power inlets

• Rated up to 15A at 250V AC

• Secure screw-type wire terminals

• Integrated cable clamp for strain relief

• Durable insulated housing for long service life

• Suitable for industrial and electronic equipment

Specifications -

• Product Type: IEC Female Power Connector

• Model: EMO-40 / MC-12

• Brand: ELCOM

• Connector Type: Rewirable Female IEC Connector

• Current Rating: 15A

• Voltage Rating: 250V AC

• Terminal Type: Pillar-Type Screw Terminals

• Cable Size: 0.75 sq mm to 1.0 sq mm

• Body Material: Glass-Filled Nylon-6

• Contact Material: Brass with Nickel Plating

• Terminal Screws: Zinc-Plated Steel

• Insulation Resistance: 100 MOhm Minimum at 500V DC

• Dielectric Strength: 2kV AC for 1 Minute

Applications -

• Computer power cords

• Switch mode power supplies (SMPS)

• Industrial control equipment

• Laboratory and test instruments

• UPS and inverter systems

• Audio and video equipment

• Electronic enclosures

• DIY electrical and electronic projects
