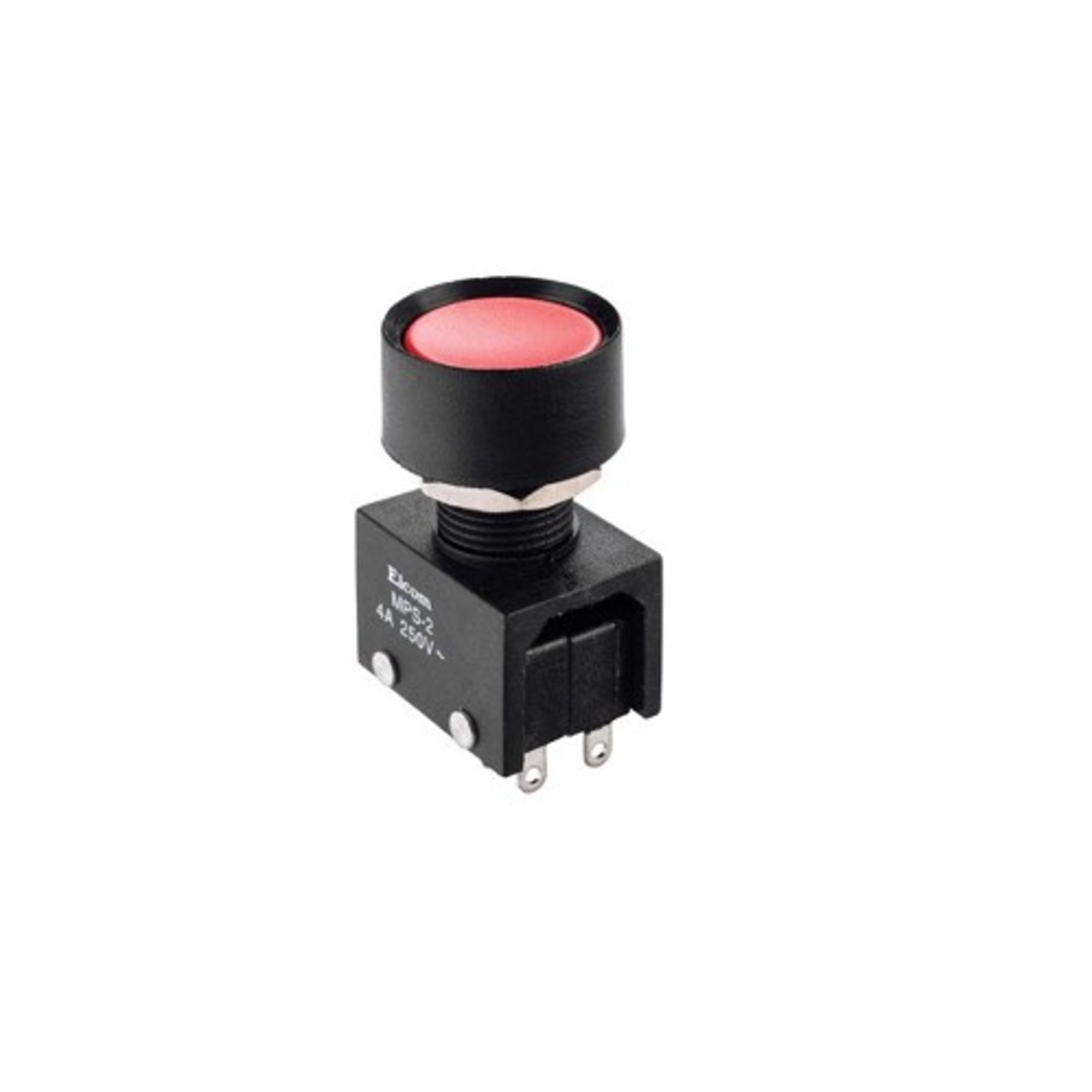

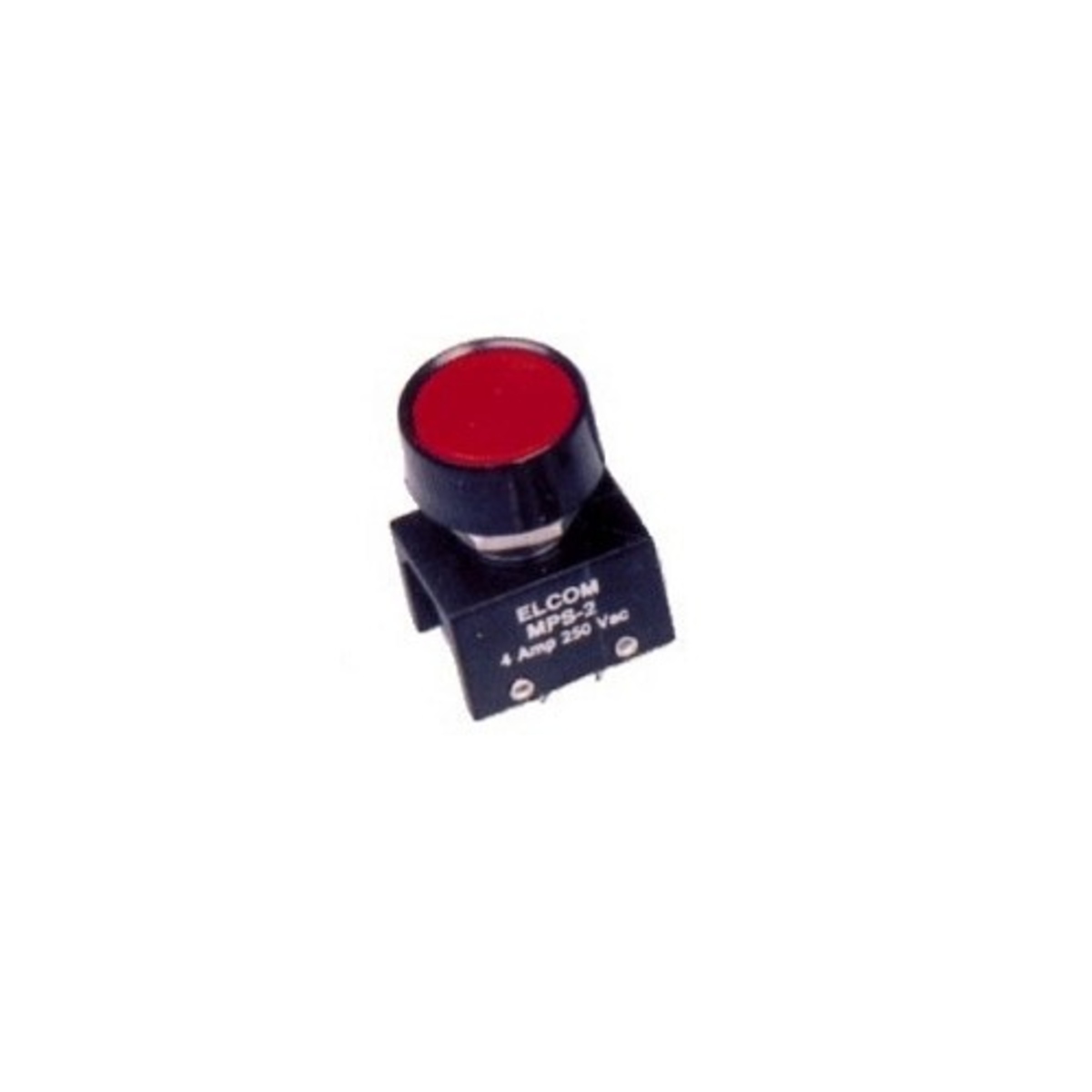

ELCOM MPS-2-04 Red 8-Leg Push Button Micro Switch Panel Mount (2NO + 2NC, 4A 250V AC)

The ELCOM MPS-2-04 Red Push Button Micro Switch is a heavy-duty panel mount momentary switch designed for reliable switching in industrial control panels, machinery, instrumentation, and electronic equipment. It features a shrouded red push button actuator and 2 Normally Open (2NO) + 2 Normally Closed (2NC) contacts, enabling simultaneous control of multiple circuits.

Rated for 4A at 250V AC, the MPS-2-04 is built with silver-plated brass terminals, durable insulated housing, and solder-type terminals to ensure long service life and dependable electrical performance. Its 8-terminal design makes it ideal for complex control and switching applications.

Key Features -

• Panel mount momentary push button micro switch

• Shrouded red push button actuator

• 2 Normally Open (2NO) + 2 Normally Closed (2NC) contacts

• 8-leg configuration for multi-circuit switching

• Reliable spring-return momentary operation

• Silver-plated contacts for low contact resistance

• Durable construction for industrial applications

Specifications -

• Product Type: Panel Mount Push Button Micro Switch

• Model: MPS-2-04

• Brand: ELCOM

• Switch Type: Shrouded Momentary Micro Switch

• Contact Arrangement: 2NO + 2NC

• Number of Terminals: 8

• Mounting Type: Panel Mount

• Actuator Colour: Red

• Current Rating: 4A

• Voltage Rating: 250V AC

• Terminal Type: Solder Terminals

• Terminal Material: Brass with Silver Plating

• Contact Resistance: 20 mOhm Maximum (Initial)

• Insulation Resistance: 100 MOhm Minimum at 500V DC

• Dielectric Strength: 1kV AC for 1 Minute

• Mechanical Life: 50,000 Cycles

• Electrical Life: 10,000 Cycles Minimum

• Operating Temperature: -20C to +85C

• Maximum Soldering Temperature: 270C for 5 Seconds Maximum

• Product Weight: 13.6g

Applications -

• Industrial control panels

• Machinery control systems

• Automation equipment

• Test and measurement instruments

• Electronic equipment

• Safety and interlock circuits

• Process control systems

• DIY electronic projects
