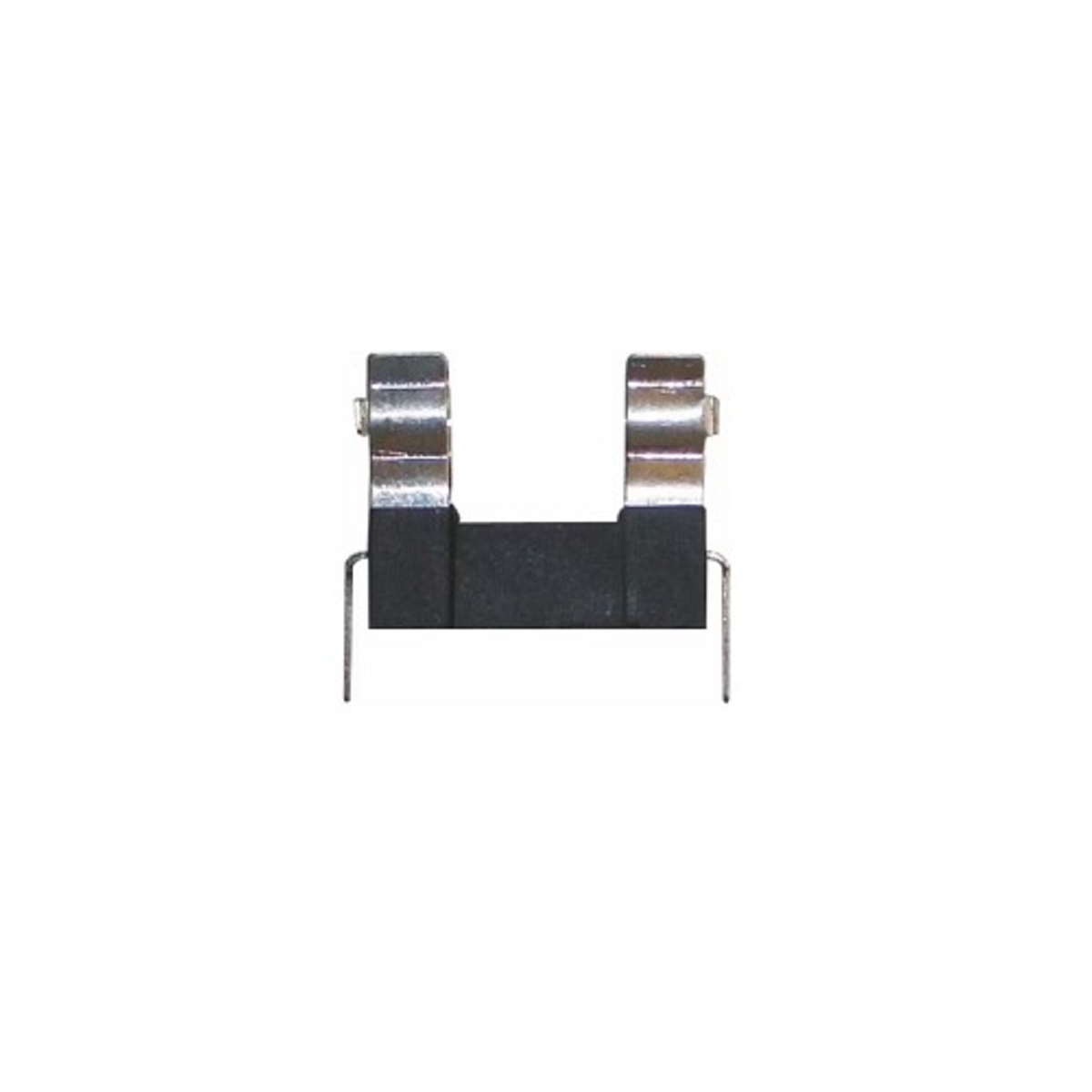

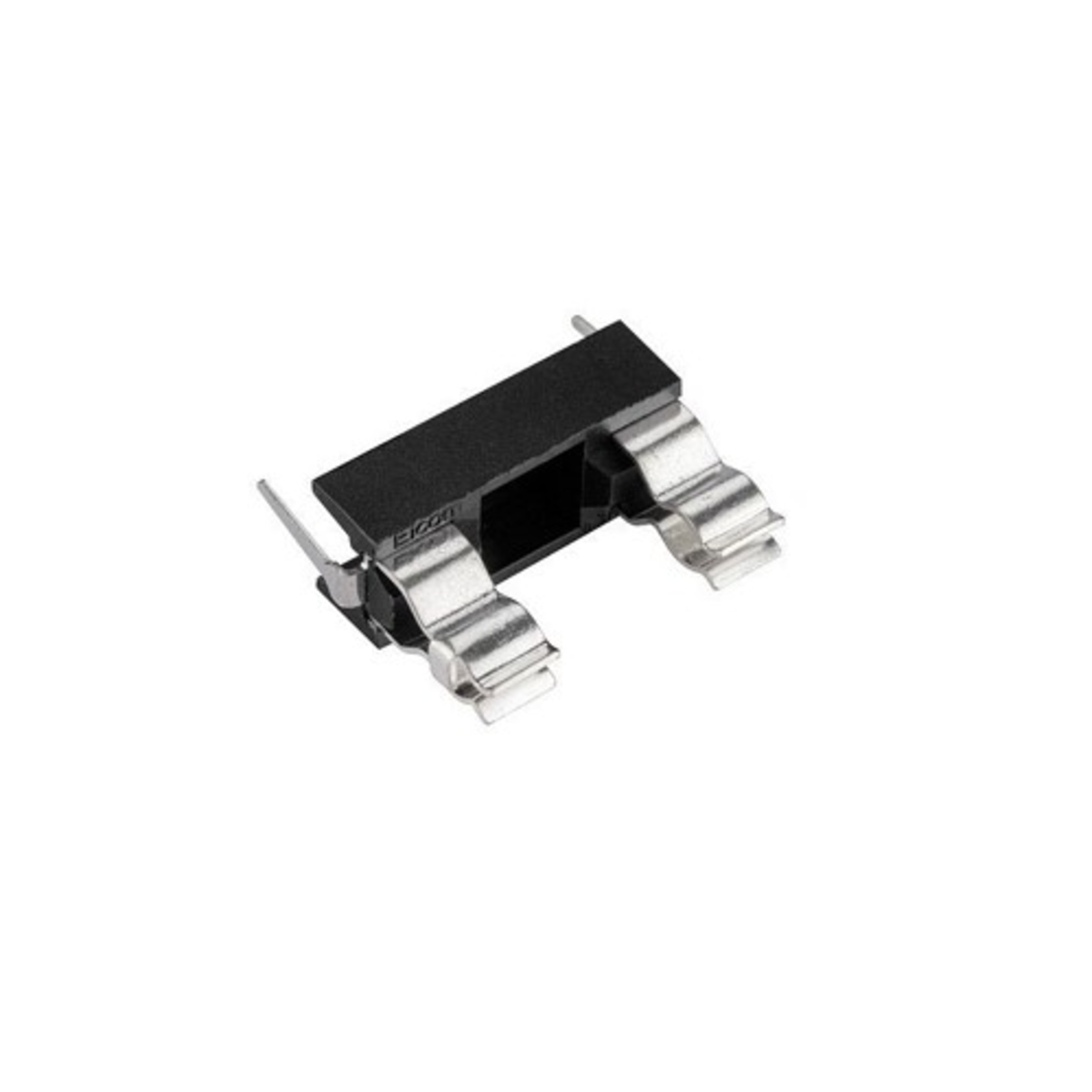

ELCOM PBF1 PCB Mount Fuse Holder 5x20mm (Solder Type Fuse Holder)

The ELCOM PBF1 Fuse Holder is a PCB mount fuse holder designed for secure installation of 5x20mm cartridge fuses in power supplies, industrial equipment, consumer electronics, and control circuits. Its solder-type terminals ensure reliable electrical connections, while the robust construction provides safe fuse retention and long-term durability.

Key Features -

• ELCOM fuse holder

• Suitable for 5x20mm cartridge fuses

• PCB mounting design

• Solder-type terminals

• Secure fuse retention

• High insulation resistance

• Durable construction

Specifications -

• Product type - Fuse Holder

• Model - PBF1

• Brand - ELCOM

• Fuse size - 5 x 20mm

• Mounting type - PCB Mount

• Terminal type - Solder Type

• Rated current - 6.3A

• Rated voltage - 250V

• Insulation resistance - 1000 M Ohm

• Contact resistance - 10 m Ohm Maximum

• High voltage breakdown - 2KV AC

• Operating temperature - -20C to +85C

Applications -

• Power supplies

• Industrial control systems

• Consumer electronics

• Battery chargers

• Test equipment

• Electronic control circuits

• Protection and safety systems
