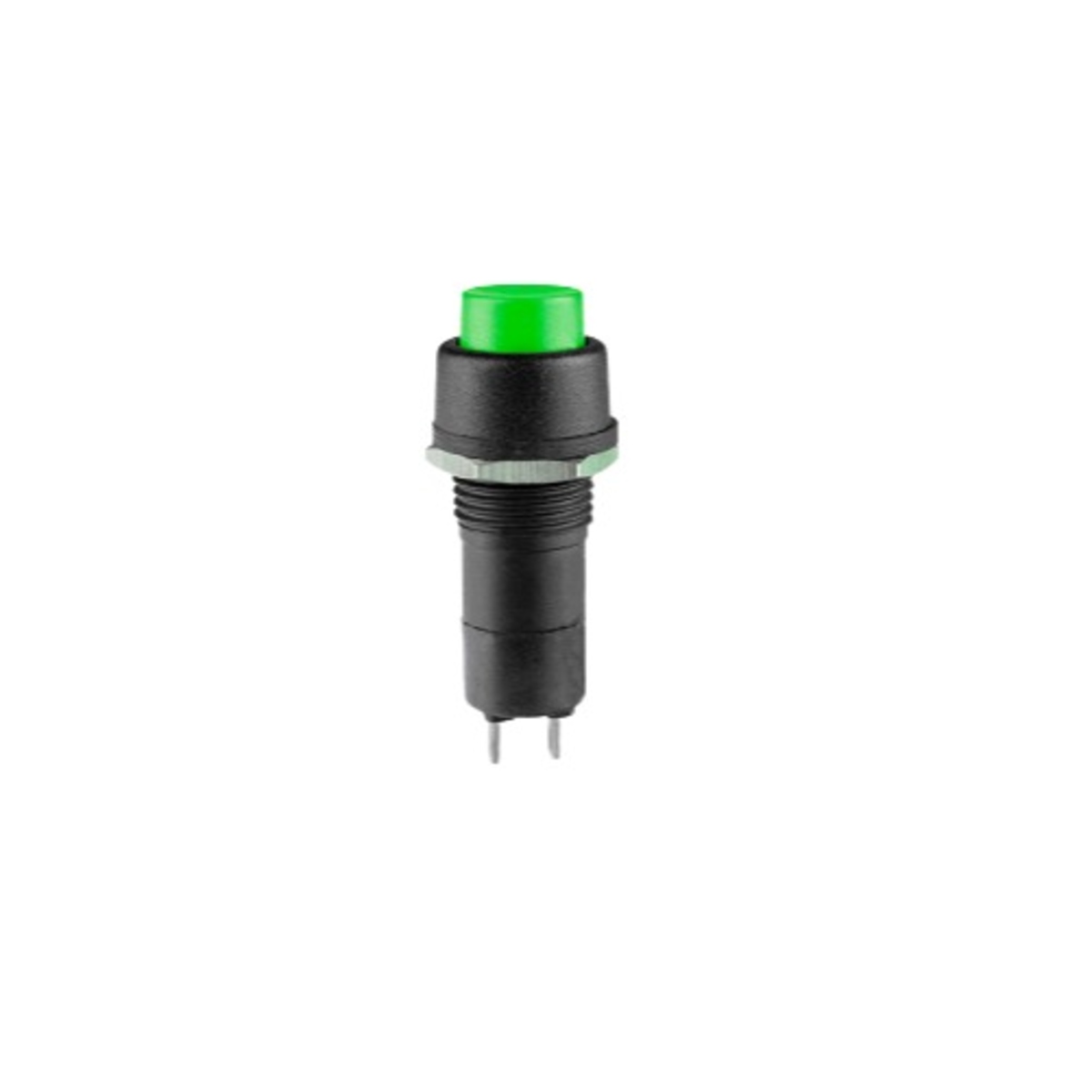

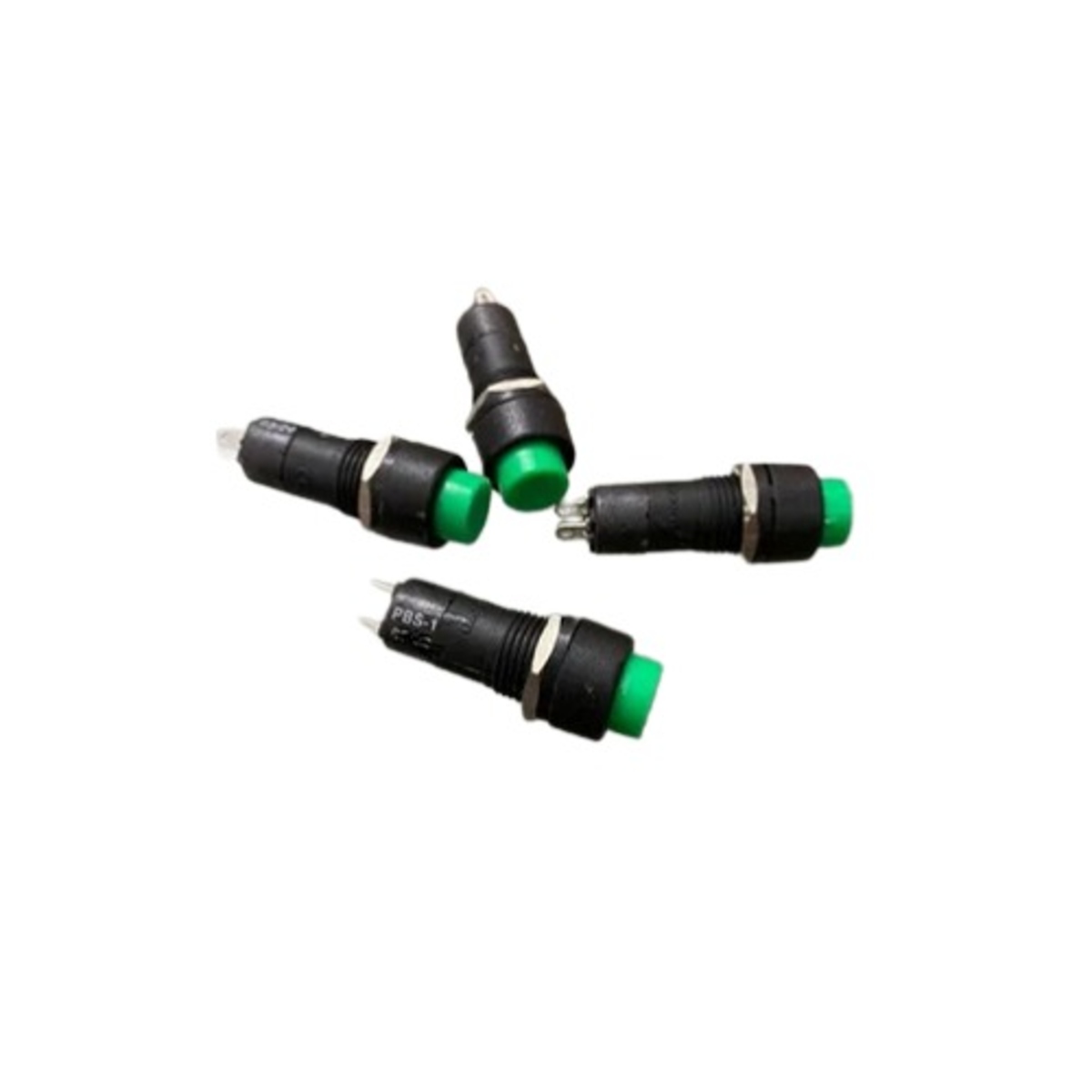

ELCOM PBS1R07 Green Push-On Momentary Switch Panel Mount SPST Push Button Switch (3A 250V AC)

The ELCOM PBS1R07 Green Push-On Switch is a panel mount momentary push button switch designed for reliable temporary switching in industrial control panels, electronic equipment, automation systems, and electrical applications. It features a round green actuator with a Single Pole Single Throw (SPST) Normally Open contact configuration, making it ideal for start, reset, trigger, and control functions.

Built with a durable nylon body, silver-plated copper contacts, and solder terminals, the PBS1R07 offers dependable electrical performance, long mechanical life, and easy panel installation.

Key Features -

• Push-to-ON momentary push button switch

• Green round actuator for clear visual identification

• SPST normally open contact configuration

• Reliable spring-return switching action

• Panel mount screw-type installation

• Silver-plated contacts for low contact resistance

• Durable nylon body for long service life

Specifications -

• Product Type: Momentary Push Button Switch

• Model: PBS1R07

• Brand: ELCOM

• Switch Type: Push-On Momentary (Round Head)

• Contact Configuration: SPST Normally Open (NO)

• Mounting Type: Panel Mount (Screw-Type)

• Actuator Colour: Green

• Housing Colour: Black

• Current Rating: 3A

• Voltage Rating: 250V AC

• Terminal Type: Solder Terminal

• Contact Material: Copper with Silver Plating

• Body Material: Nylon

• Contact Resistance: 10 mOhm Maximum (Initial)

• Insulation Resistance: 100 MOhm Minimum at 500V DC

• Dielectric Strength: 1.5kV AC for 1 Minute

• Mechanical Life: 50,000 Cycles

• Electrical Life: 10,000 Cycles

Applications -

• Industrial control panels

• Start and reset buttons

• Electronic equipment

• Automation systems

• Instrumentation equipment

• Power control circuits

• DIY electrical projects

• Machinery control interfaces
