ELCOM RSF-22/KRSF 2204 7 03 DPDT Rocker Switch (Non-Illuminated Panel Mount Switch)

The ELCOM RSF-22/KRSF 2204 7 03 is a high-quality DPDT (Double Pole Double Throw) rocker switch designed for reliable switching in electrical and electronic equipment. Featuring a snap-in panel mount design, durable nylon housing, and silver-plated contacts, this switch is suitable for industrial controls, power distribution, appliances, and instrumentation applications.

Key Features -

• DPDT (Double Pole Double Throw) contact configuration

• Non-illuminated rocker switch design

• Snap-in panel mounting for easy installation

• High reliability with 10,000 electrical operating cycles

• Silver-plated contacts for low contact resistance

• Suitable for AC power switching applications

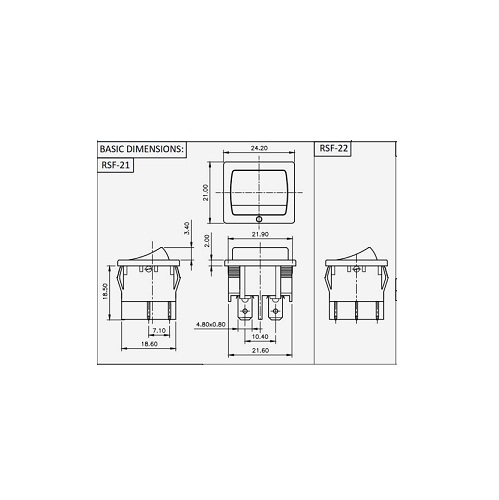

Specifications -

• Product type - Rocker Switch

• Model - RSF-22/KRSF 2204 7 03

• Brand - ELCOM

• Contact arrangement - DPDT (Double Pole Double Throw)

• Mounting type - Panel Mount, Snap-in

• Switch type - Non-Illuminated Rocker Switch

• Rated current - 4A

• Rated voltage - 250VAC

• Contact resistance (initial) - 10mΩ Maximum

• Insulation resistance - 100MΩ Minimum at 500VDC

• Dielectric strength - 1kVAC for 1 minute

• Electrical life - 10,000 cycles

• Housing material - Nylon

• Terminal material - Brass/Copper, Silver Plated

• Terminal style - Solder Type / Fast-on 4.8 × 0.8mm

• Operating temperature (with/without load) - -20°C to +85°C

• Maximum soldering temperature - 270°C for 5 seconds

• Maximum panel thickness - 3.0mm

• Compliance standard - IEC 1058-1:1996

• Rocker color options - Black (BK) / Red (RD)

• Housing color - Black (BK)

Applications -

• Industrial control panels

• Power distribution equipment

• Electrical appliances

• Test and measurement instruments

• Audio and electronic equipment

• DIY and OEM electronic projects
