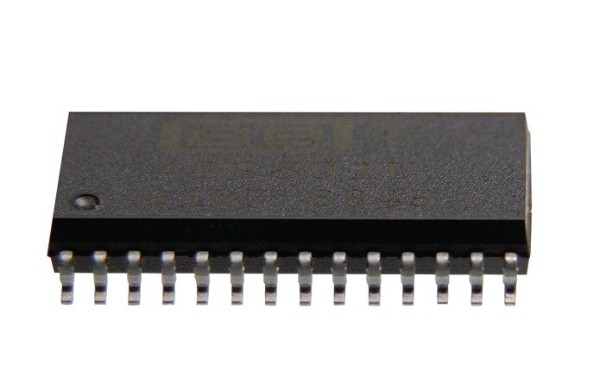

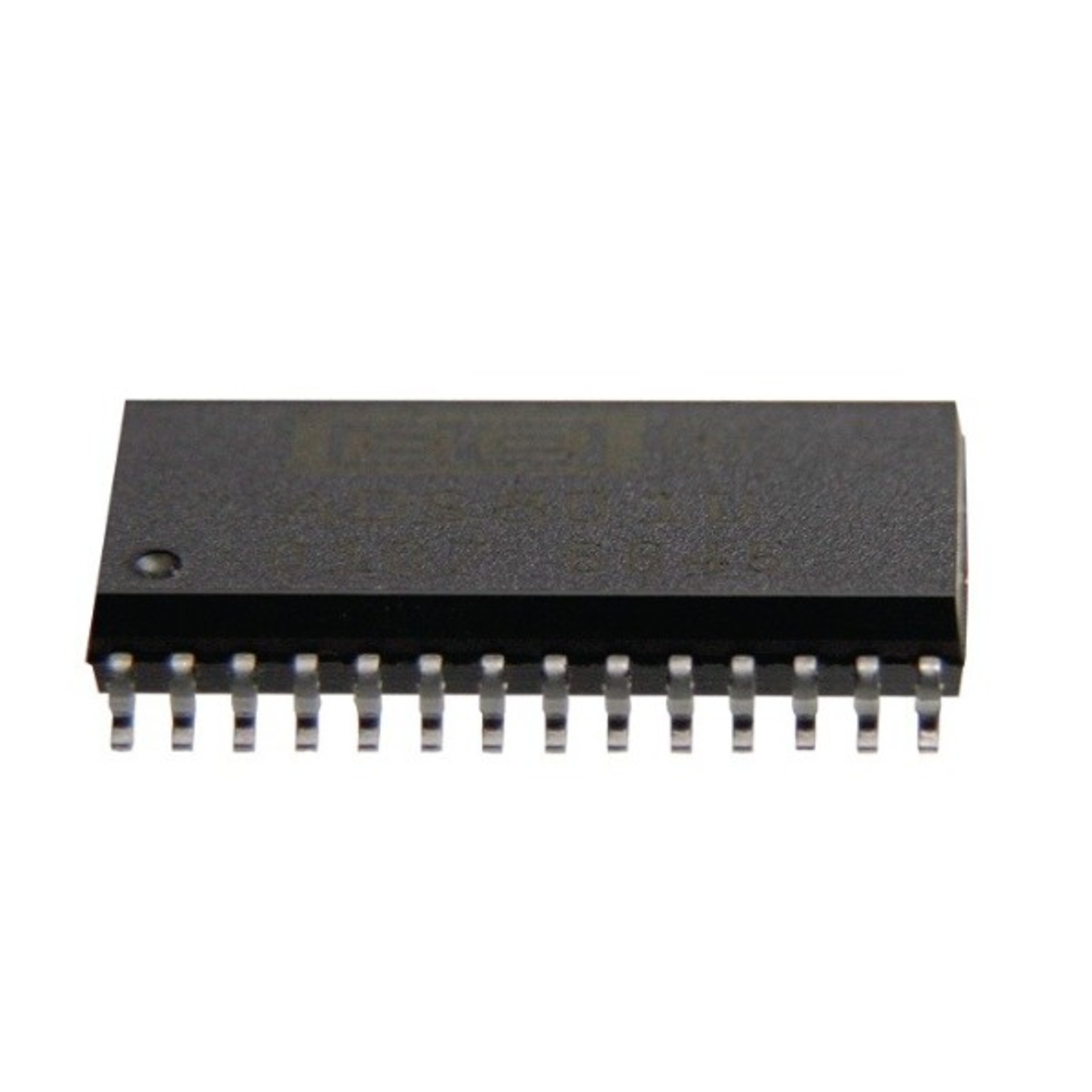

ENC28J60-I/SO Ethernet Controller IC SOIC-28 (ENC28J60-I/SO Ethernet Controller)

The ENC28J60-I/SO is a stand-alone Ethernet controller IC from Microchip designed to add Ethernet connectivity to microcontrollers and embedded systems through a standard SPI interface. It integrates a 10BASE-T Ethernet MAC and PHY, along with 8KB of packet buffer memory, making it an ideal solution for IoT devices, industrial automation, networking equipment, home automation, and embedded communication applications.

Key Features -

• Stand-alone Ethernet controller IC

• Integrated 10BASE-T MAC and PHY

• SPI serial communication interface

• IEEE 802.3 compliant Ethernet controller

• 8KB dual-port packet buffer memory

• Supports full-duplex and half-duplex operation

• SOIC-28 SMD package

• SPI clock speed up to 20MHz

Specifications -

• Product type - Ethernet Controller IC

• Model - ENC28J60-I/SO

• Interface - SPI Serial Interface

• Ethernet standard - IEEE 802.3 10BASE-T

• Integrated functions - MAC and PHY

• Buffer memory - 8KB Packet Buffer SRAM

• Operating voltage - 3.1V to 3.6V

• SPI clock frequency - Up to 20MHz

• Package type - SOIC-28

• Mounting type - SMD

• Operating temperature - -40C to +85C

Applications -

• IoT devices

• Embedded Ethernet systems

• Industrial automation

• Home automation controllers

• Network-enabled microcontroller projects

• Data acquisition systems

• Security and monitoring equipment
