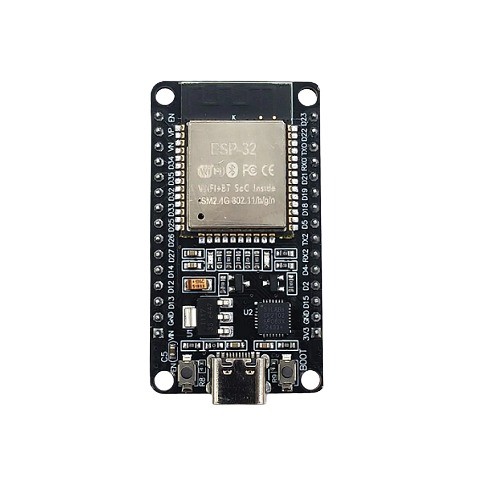

ESP32 30 PIN CP2102 TYPE C WIFI AND BLUETOOTH IOT DEVELOPMENT BOARD

The ESP32 30 Pin CP2102 Type C Development Board is a powerful IoT platform featuring built in WiFi and Bluetooth connectivity. It is designed for embedded systems smart devices and automation projects requiring wireless communication and high processing performance.

The board is based on the ESP32 microcontroller from Espressif Systems and includes the CP2102 USB to UART interface from Silicon Labs for easy programming and serial communication through a Type C USB connector.

KEY FEATURES

Built in WiFi and Bluetooth connectivity

Dual core 32 bit processor

30 pin breakout design

Type C USB interface

Integrated CP2102 USB to serial converter

Multiple GPIO PWM ADC and DAC pins

Low power modes supported

Compatible with Arduino and ESP IDF

SPECIFICATIONS

Microcontroller ESP32

CPU Xtensa dual core 32 bit

Clock Frequency up to 240 MHz

Operating Voltage 3.3V

USB Interface Type C

USB to UART Chip CP2102

WiFi 802.11 b g n

Bluetooth Classic and BLE

Flash Memory typically 4MB model dependent

GPIO Pins 30 pin breakout

INTERFACES

Type C USB port

3.3V and GND pins

GPIO digital pins

ADC input pins

DAC output pins

UART SPI I2C interfaces

EN Reset button

BOOT Flash button
