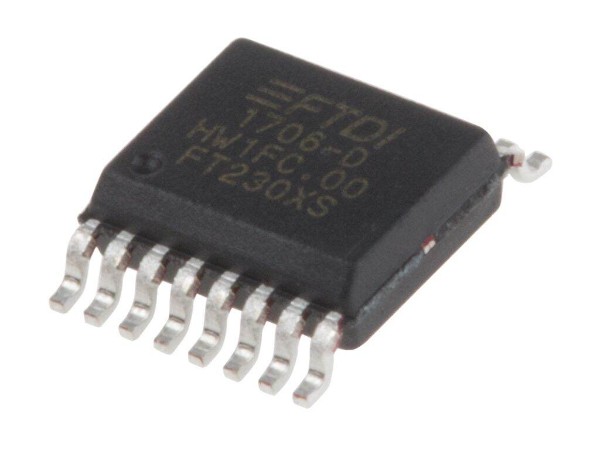

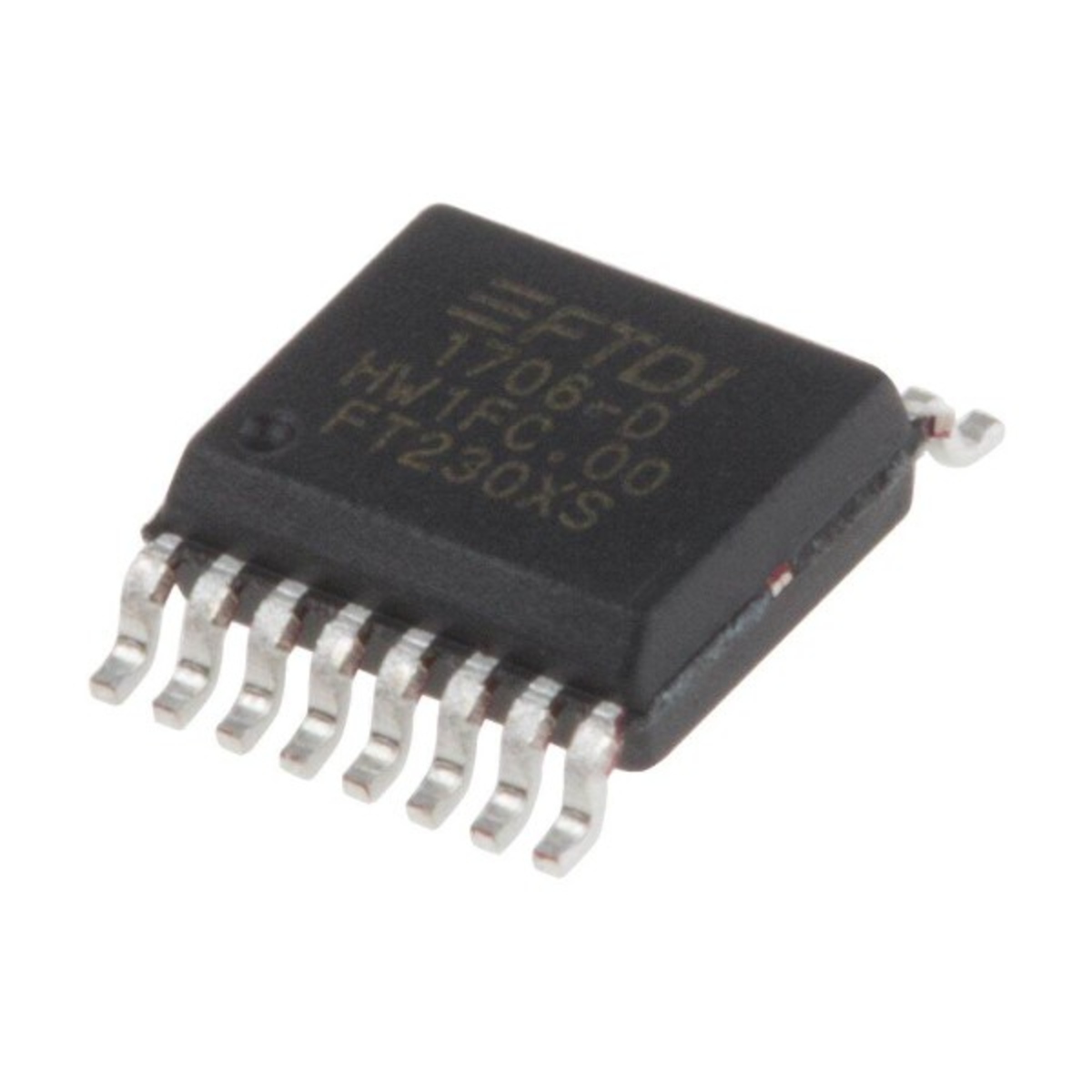

FT230XS-R USB to UART Bridge IC SSOP-16 (FT230XS-R USB Serial Converter)

The FT230XS-R is a compact USB to UART bridge IC from FTDI designed to provide reliable USB-to-serial communication for microcontrollers, embedded systems, industrial equipment, and communication devices. It enables seamless conversion between USB and UART interfaces, allowing computers to communicate with serial-based electronic systems through a standard USB connection.

The device integrates USB protocol handling, serial interface functions, and clock circuitry, reducing external component requirements and simplifying design implementation.

Key Features -

• USB to UART bridge controller

• Full-speed USB 2.0 compatible

• Integrated USB protocol engine

• UART serial communication interface

• Low external component count

• Internal clock generation circuitry

• SSOP-16 SMD package

Specifications -

• Product type - USB to UART Bridge IC

• Model - FT230XS-R

• Interface type - USB to UART

• USB standard - USB 2.0 Full Speed

• UART support - TXD, RXD Serial Communication

• Data transfer - USB Serial Conversion

• Operating voltage - 3.3V to 5V Compatible

• Package type - SSOP-16

• Mounting type - SMD

• Application - USB Serial Communication

Applications -

• Microcontroller programming interfaces

• Embedded systems

• USB to serial adapters

• Industrial automation equipment

• Data logging systems

• Communication devices

• Development boards and prototyping
