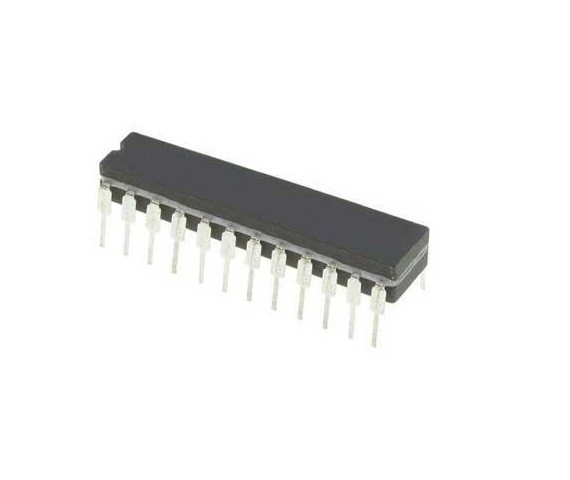

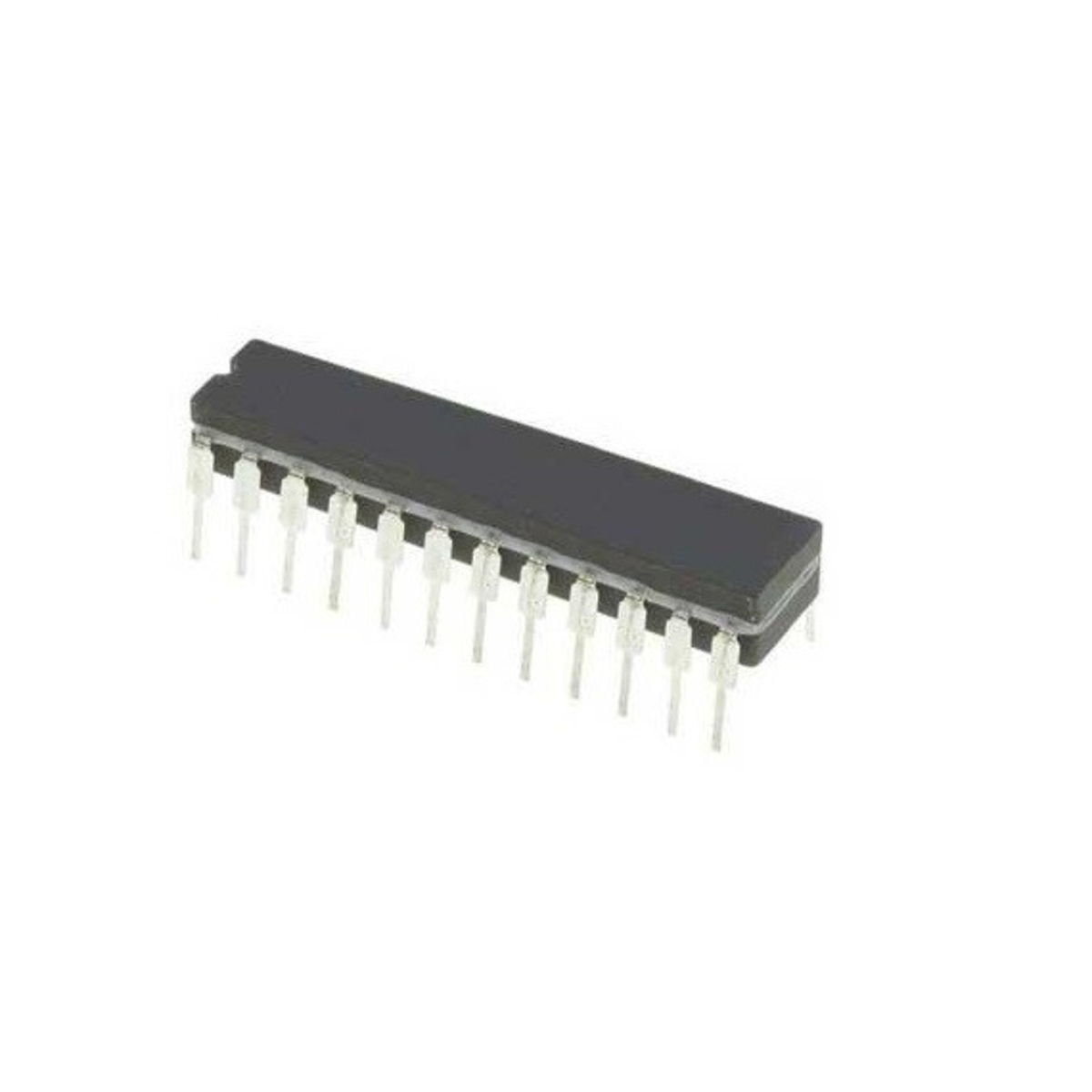

GAL20V8 Programmable Logic Device IC (20V8, PLD)

The GAL20V8 is a Generic Array Logic programmable logic device designed to implement custom digital logic functions in a single integrated circuit. It contains a programmable logic array and configurable output logic macrocells, allowing designers to replace multiple standard logic ICs with a single programmable device. It is suitable for address decoding, control logic, and digital circuit prototyping.

Key Features -

• Electrically programmable logic device

• Reprogrammable architecture, depending on manufacturer and device variant

• Configurable output logic macrocells

• Supports combinational and registered logic implementations

• Programmable logic equations for custom digital functions

• Reduces the number of discrete logic ICs required

• Suitable for digital system development and legacy circuit maintenance

Specifications -

• Part Number: GAL20V8

• Component Type: Generic Array Logic Programmable Logic Device

• Logic Architecture: Programmable AND array with configurable output logic

• Number of Pins: Depends on the package variant

• Logic Implementation: Combinational and registered functions

• Programming Method: Device dependent

• Supply Voltage: Depends on the manufacturer and device variant

• Package: DIP or other package options, depending on the suffix

Applications -

• Address decoding circuits

• Digital control logic

• State machine implementation

• Programmable combinational logic

• Interface logic between digital components

• Legacy electronic equipment maintenance

• Digital circuit prototyping
