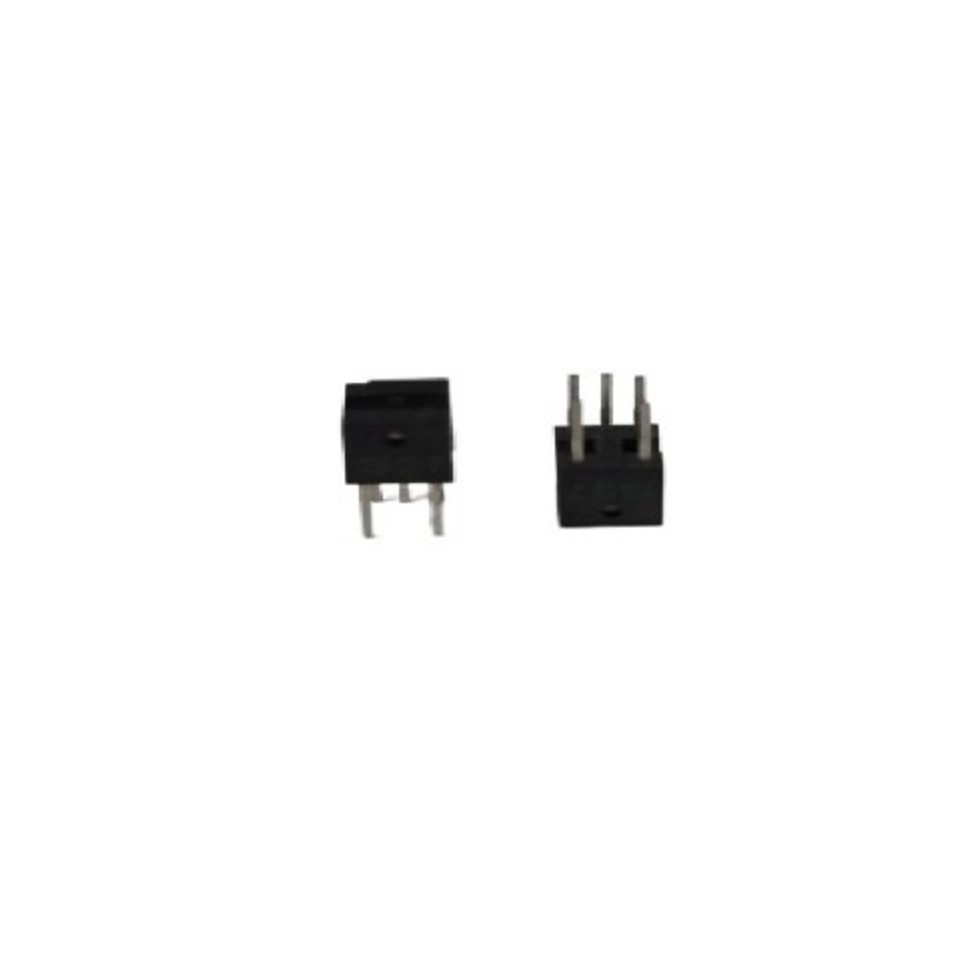

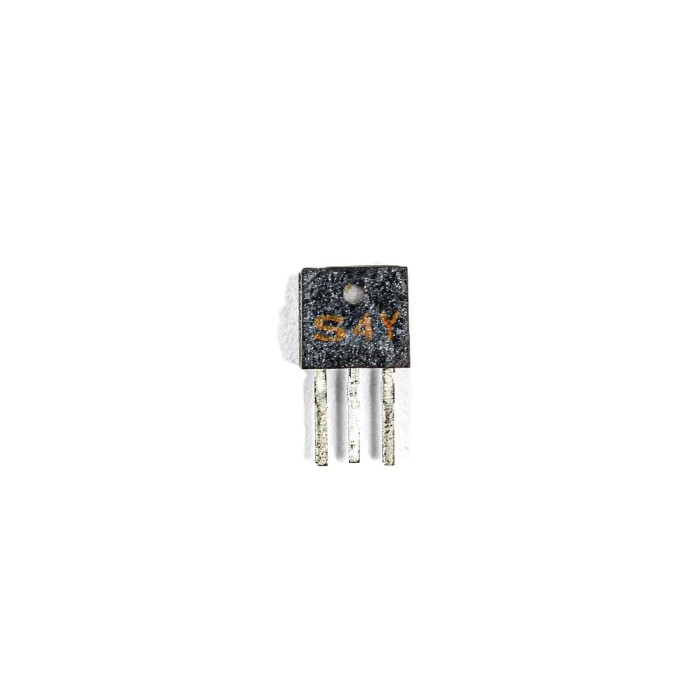

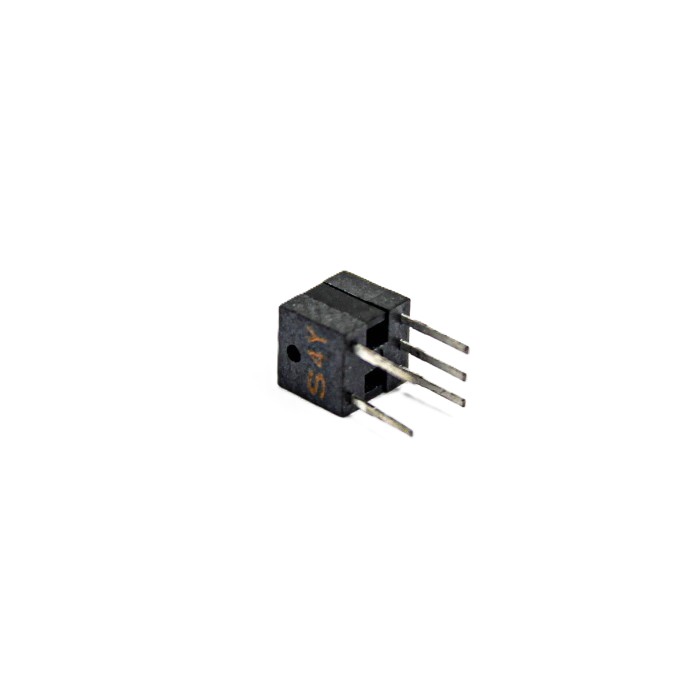

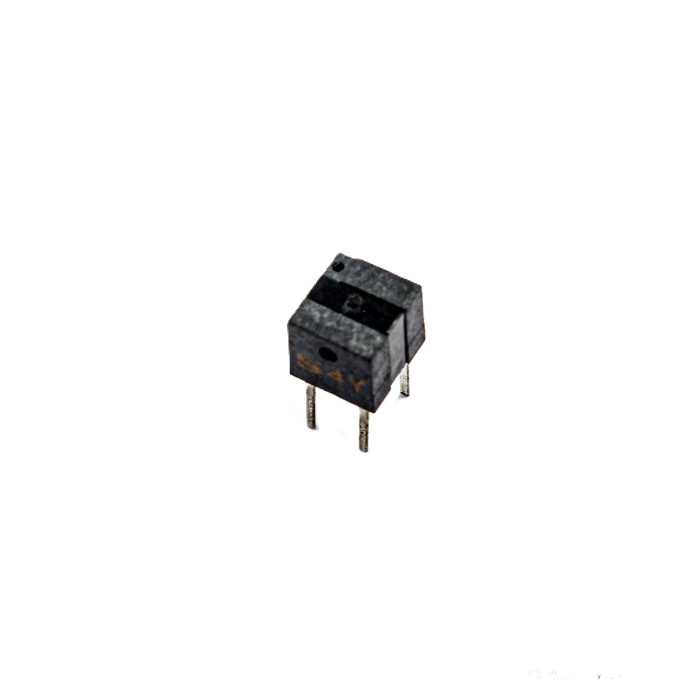

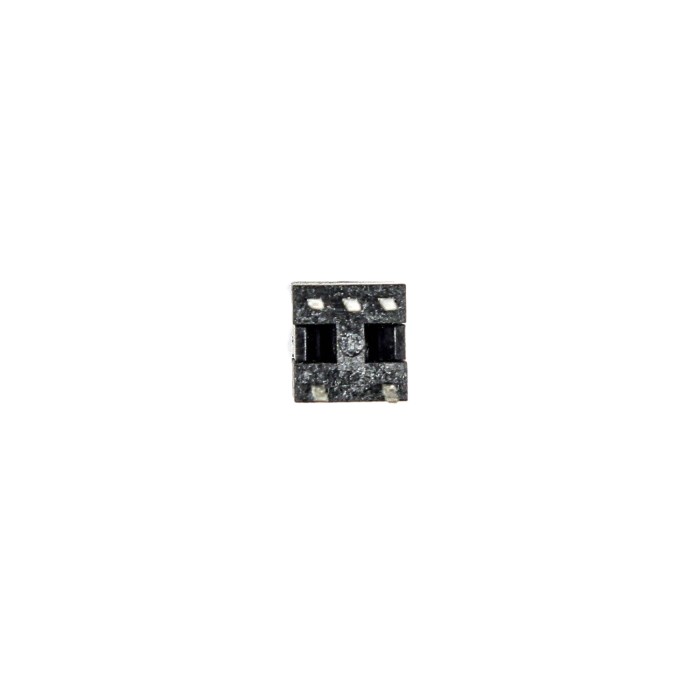

GP1S036HEZ Tilt Sensor IC (Sharp GP1S036HEZ Tilt Sensor)
The GP1S036HEZ Tilt Sensor IC is a compact optical tilt detection sensor designed to detect direction and orientation changes using an internal rolling ball mechanism. It integrates a photointerrupter system with phototransistor output, enabling accurate tilt detection in multiple directions. Designed by Sharp, this sensor provides reliable non contact operation with stable performance and fast response in electronic systems.
The GP1S036HEZ tilt sensor is widely used in India for embedded systems, motion detection, orientation sensing, and industrial electronics. It is valued for its multi direction detection capability, compact design, and reliable operation in automation and consumer electronic applications.
Key Features
- Multi Direction Tilt Detection: Detects orientation in multiple directions
- Built In Ball Mechanism: Accurate tilt sensing
- Phototransistor Output: Stable and reliable signal output
- Non Contact Operation: High reliability and long life
- Compact Design: Easy PCB integration
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Optical tilt sensor
- Detection Method: Photointerrupter with rolling ball
- Output Type: 2 phase phototransistor output
- Supply Voltage: Standard operating conditions
- Output Current: Up to 20mA
- Operating Temperature: -25 to +85 degree C
- Mounting Type: Through hole PCB mount
- Detection Capability: Multi direction tilt sensing
- Applications: Motion detection orientation sensing embedded systems industrial electronics robotics
Pinout Configuration Sensor Layout
- Infrared emitter pins
- Phototransistor output pins for dual phase detection
- VCC supply connection
- GND ground connection
