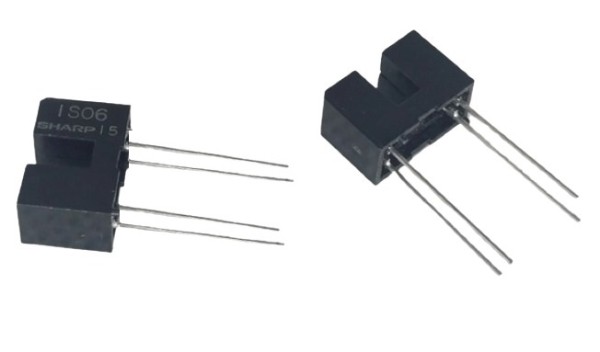

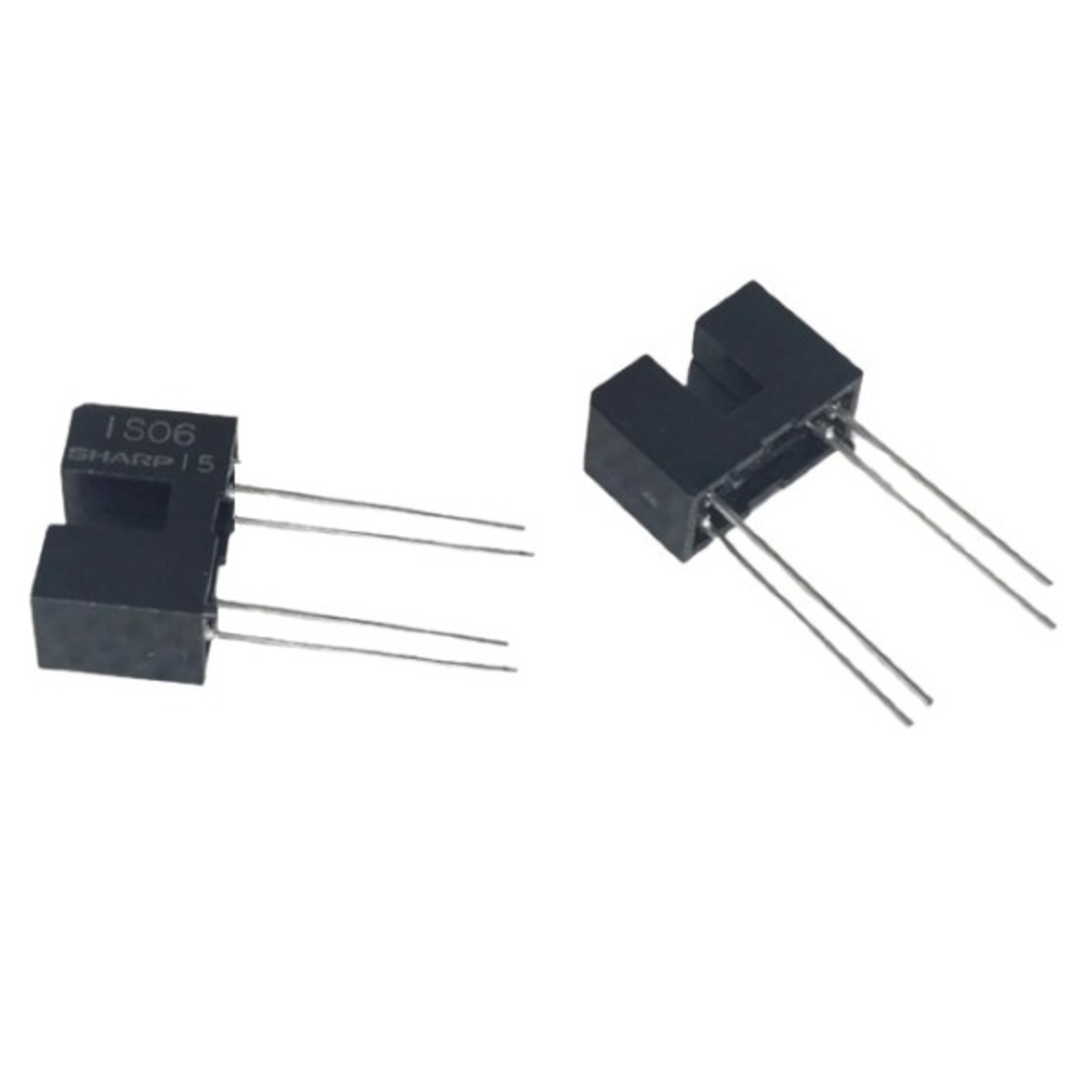

GP1S522 Photoelectric Switch Sensor (GP1S522 Optical Sensor)
The GP1S522 Photoelectric Switch Sensor is a compact slotted optical interrupter designed for non contact object detection and position sensing. It consists of an infrared emitting diode and a phototransistor placed opposite each other within a molded slot. When an object interrupts the IR beam passing through the slot, the output of the phototransistor changes state, enabling precise switching and detection.
The GP1S522 sensor is widely used in India for embedded systems, industrial electronics, printers, and automation equipment. It is valued for its reliable detection, fast response time, and stable performance in applications such as encoder feedback, paper detection, and motion sensing.
Key Features
- Slotted Photoelectric Switch: Through beam IR detection
- Non Contact Operation: No mechanical wear
- Fast Response Time: Suitable for high speed applications
- High Sensitivity: Accurate object detection
- Compact Design: Easy PCB integration
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Photoelectric switch opto interrupter
- Sensing Method: Through beam slot detection
- Output Type: Phototransistor output
- Slot Width: Typically around few millimeters
- Operating Voltage: Standard LED and transistor biasing
- Forward Current: Up to 50mA typical
- Collector Current: Up to 20mA
- Collector Emitter Voltage: Up to 30V
- Response Time: Fast microsecond level switching
- Mounting Type: Through hole or PCB mount
- Applications: Encoder systems paper detection position sensing speed detection industrial electronics embedded systems
Pinout Configuration Sensor Layout
- Anode pin of IR emitter
- Cathode pin of IR emitter
- Collector pin of phototransistor
- Emitter pin of phototransistor
