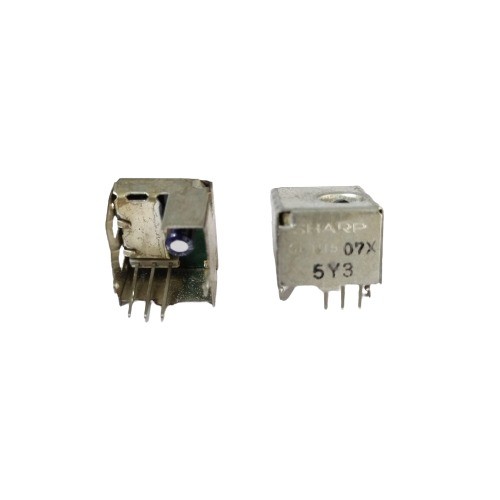

GP1U5 IR Light Detecting Transmitter IC (Sharp GP1U5 IR Transmitter)
The GP1U5 IR Light Detecting Transmitter IC is an infrared emitting device designed for IR communication and light detection systems. It converts electrical signals into infrared light output, enabling reliable transmission in remote control and sensing applications. Designed by Sharp, it offers stable performance, fast switching capability, and easy integration in compact electronic circuits.
The GP1U5 IR transmitter is widely used in India for IR communication modules, remote control systems, industrial electronics, and embedded systems. It is valued for its consistent IR output, efficient signal transmission, and reliable performance in various applications.
Key Features
- Infrared Light Transmission: Converts electrical signals to IR output
- High Efficiency Emission: Reliable signal transmission
- Fast Switching Speed: Suitable for communication systems
- Stable Performance: Consistent IR output
- Compact Design: Easy integration into circuits
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Device Type: IR light transmitter
- Emission Type: Infrared LED
- Output Type: Optical signal output
- Operating Voltage: Standard LED operating range
- Switching Speed: High speed operation
- Package Type: Compact transmitter package
- Mounting Type: PCB mount
- Manufacturer: Sharp
- Applications: IR communication remote control systems industrial electronics embedded systems optical transmission
Pinout Configuration Sensor Layout
- Anode pin for input signal
- Cathode pin for ground connection
- Optical output interface for IR emission
