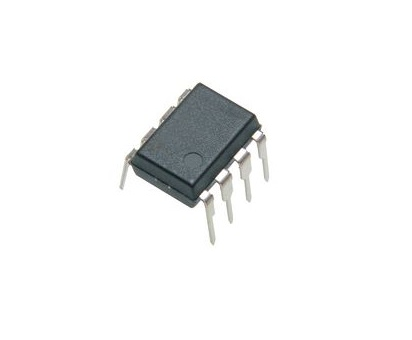

HA17358 Dual Operational Amplifier IC (HA17358 DIP IC)
The HA17358 is a dual operational amplifier integrated circuit designed for general-purpose analog applications. It contains two independent high-gain op-amps in a single package, making it suitable for signal amplification, filtering, and conditioning circuits. The DIP package allows easy through-hole mounting and convenient replacement in a wide range of electronic designs.
In India, the HA17358 is widely used in consumer electronics, industrial circuits, and audio applications. It is valued for its low power consumption, stable performance, and versatility in various analog signal processing tasks.
Key Features
- Dual Op-Amp Design: Includes two independent operational amplifiers in one IC.
- Low Power Consumption: Suitable for energy-efficient applications.
- Wide Application Range: Ideal for amplification filtering and signal conditioning.
- Stable Operation: Provides reliable and consistent performance.
- Easy Integration: DIP package supports simple installation and servicing.
Specifications
- IC Type: Dual Operational Amplifier
- Number of Amplifiers: 2
- Operating Voltage Range: Suitable for single and dual supply operation
- Input Offset Voltage: Low
- Output Characteristics: Stable analog output
- Package Type: DIP Through-Hole
- Mounting Type: Through-Hole
- Application: Audio circuits signal processing instrumentation
Pinout Configuration (DIP IC Layout)
- Pin configuration follows standard dual op-amp layout
- Refer to datasheet or circuit diagram for exact pin details
