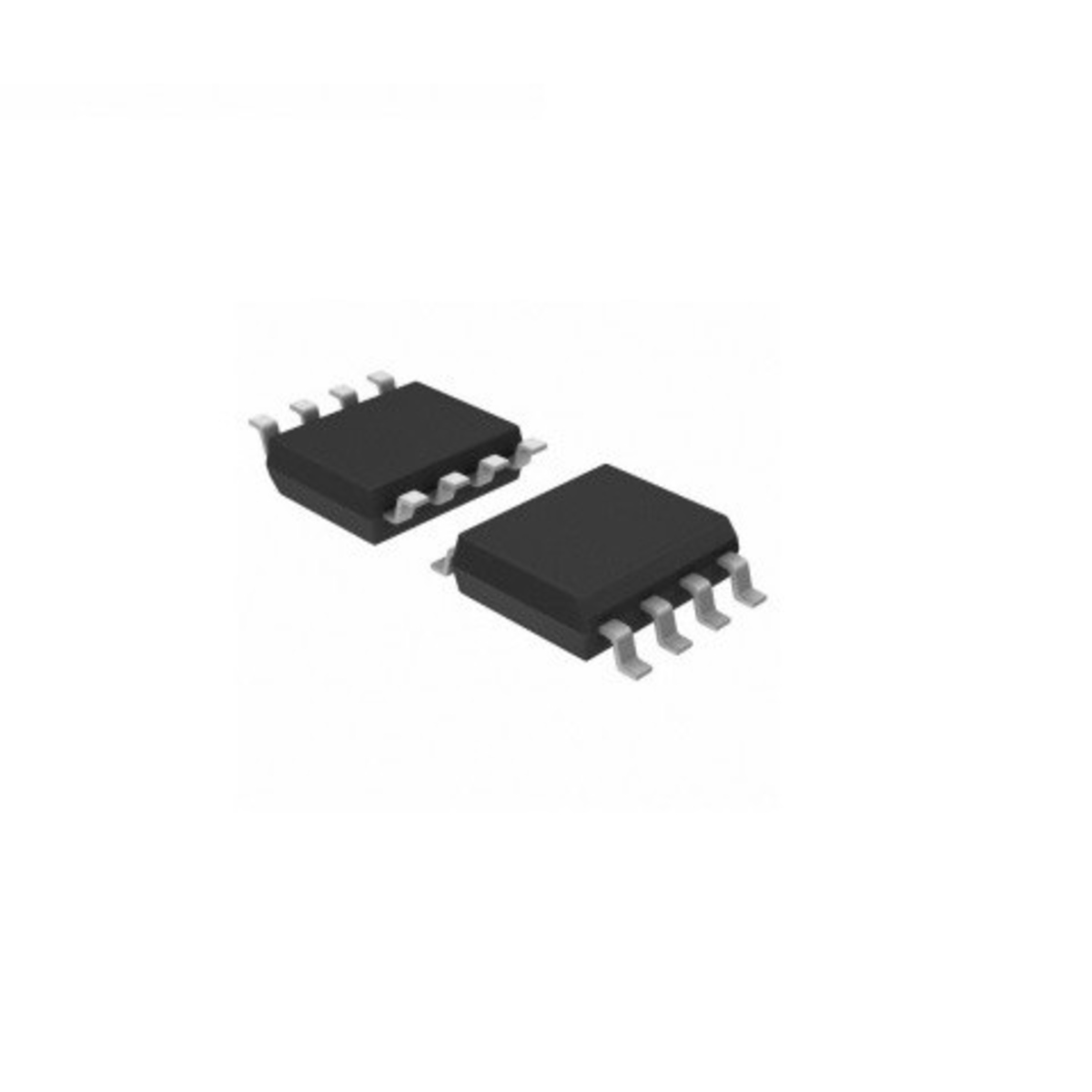

HX1304G-AGC SOIC-8 Li-Ion Battery Protection IC (HX1304G-AGC)
The HX1304G-AGC is a battery protection IC designed for lithium-ion and lithium-polymer battery management applications. It provides reliable protection against overcharge, over discharge, overcurrent, and short circuit conditions, making it suitable for portable electronic devices, battery packs, and power management systems.
Key Features -
- Lithium-ion battery protection IC
- Overcharge and over discharge protection
- Overcurrent and short circuit protection
- SOIC-8 surface mount package
- Low power battery monitoring operation
Specifications -
- IC type / Product type - Battery Protection IC
- Logic family / Component type - Power Management IC
- Package type - SOIC-8 SMD IC
- Supply voltage - Suitable for single cell lithium battery operation
- Input voltage - Battery voltage monitoring input
- Output voltage - Protection control output signals
- Current rating - Low power battery management operation
- Frequency / propagation delay - Fast protection response timing
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Overcharge detection, over discharge detection, overcurrent protection, short circuit protection, low standby current operation, battery safety monitoring support
Applications -
- Lithium-ion battery packs
- Portable electronic devices
- Battery charging systems
- Power management circuits
- Consumer electronic products
Pinout Configuration -
- Pin 1 - Battery voltage sensing pin
- Pin 2 - Ground connection
- Pin 3 - Charge control pin
- Additional pins - Discharge control pin, current sensing pin, power supply pin, protection control outputs
