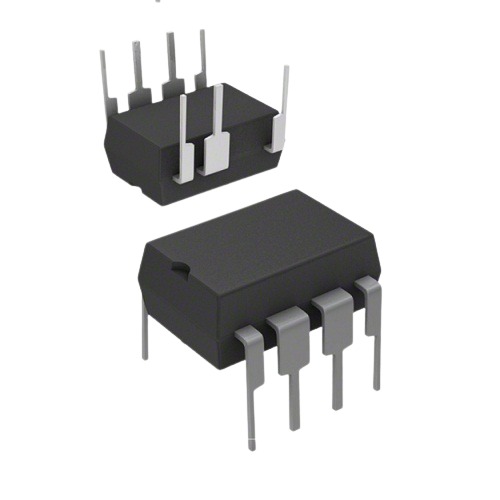

ICE3BR0680JZ PWM Controller with Integrated MOSFET – Offline SMPS Controller IC (DIP-8)

ICE3BR0680JZ PWM Controller with Integrated MOSFET – Offline SMPS Controller IC (DIP-8)

The ICE3BR0680JZ is a high-performance offline PWM controller with an integrated 800V CoolMOS™ power MOSFET, designed for compact and energy-efficient Switch Mode Power Supplies (SMPS). Featuring current-mode control, a fixed 65kHz switching frequency, and low standby power consumption, it is ideal for AC-DC power adapters, chargers, LED drivers, auxiliary power supplies, and industrial power conversion applications.

Key Features -

• Integrated offline PWM controller with high-voltage MOSFET

• Current-mode control architecture for stable operation

• Built-in 800V CoolMOS™ power MOSFET

• Fixed 65kHz switching frequency

• Supports offline AC-DC SMPS designs

• Low standby power consumption

• Through-hole DIP package for easy assembly

• Integrated protection features for improved reliability

• Suitable for power supplies up to approximately 40W

Specifications -

• Product Type - Offline PWM Controller IC

• Part Number - ICE3BR0680JZ

• PWM Control Method - Current Mode

• Application - Offline Switch Mode Power Supply (SMPS)

• Supply Voltage (VCC) - 10.5V to 25V

• Switching Frequency - 65kHz (Fixed)

• Maximum Drain-Source Voltage (VDS) - 800V

• Maximum Output Current - 9.95A (Peak)

• Maximum Output Power - 40W (Typical Application)

• Maximum MOSFET RDS(on) - 0.71Ω

• Supply Current (ICC) - 4.4mA (Typical)

• Mounting Type - Through Hole (THD)

• Package - DIP-8 (PG-DIP-8)

• Operating Temperature Range - -25°C to +130°C

• RoHS Status - Green Product / Environmentally Friendly

Applications -

• AC-DC power adapters

• Mobile phone chargers

• Auxiliary power supplies

• LED power supplies and drivers

• Consumer electronics SMPS

• Industrial power supplies

• Home appliances

• Set-top boxes

• Networking equipment

• Embedded power systems
