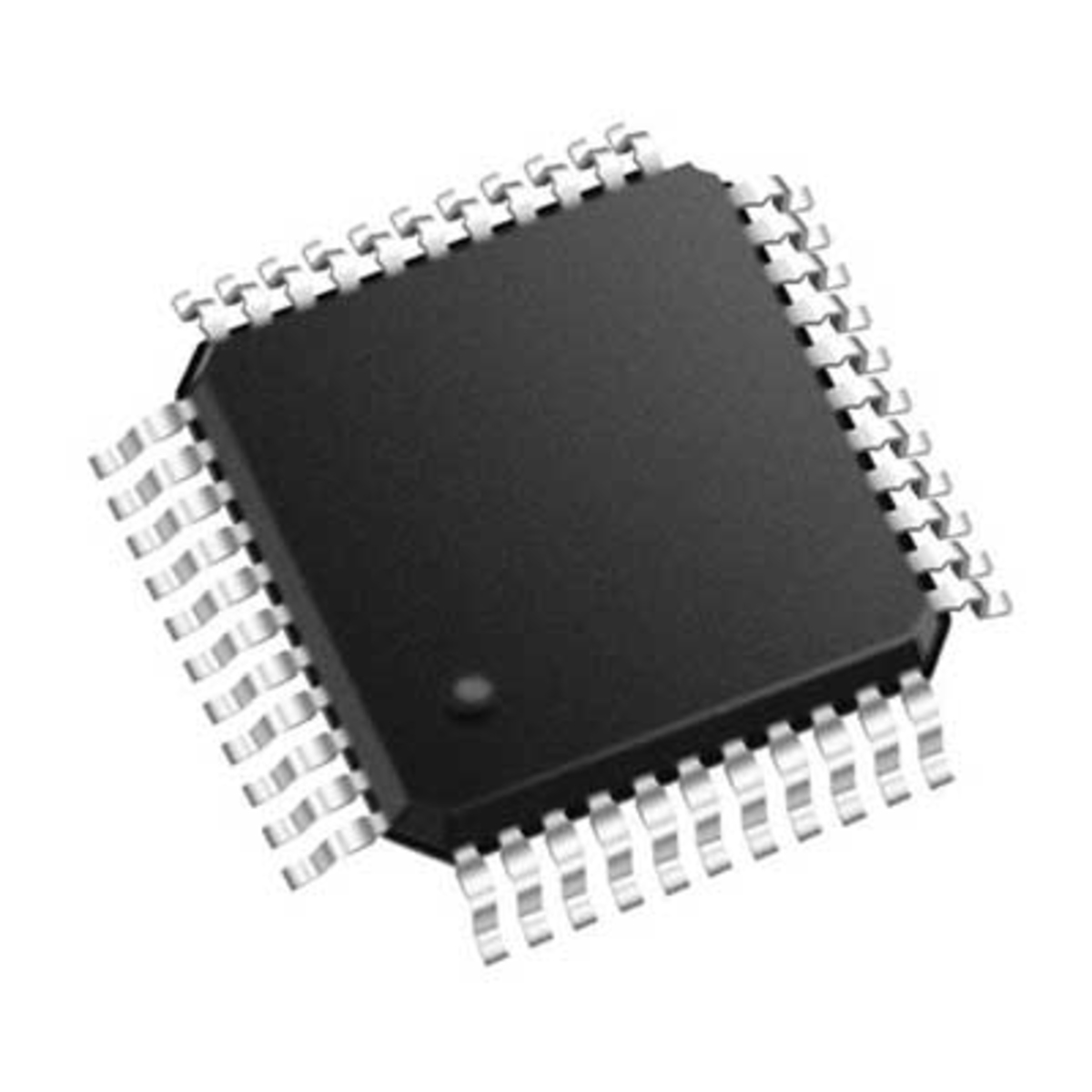

ICL7107 Digital Panel Meter ADC IC TQFP-44 (ICL7107 IC)

The ICL7107 is a high-performance 3½ digit analog-to-digital converter IC with integrated LED display drivers. It is designed for digital voltmeters, panel meters, measurement instruments, and embedded monitoring systems. The IC directly drives common anode LED displays and provides accurate analog signal conversion with minimal external components.

Key Features -

• 3½ digit analog-to-digital converter

• Integrated LED display drivers

• Direct LED display interface

• High accuracy measurement capability

• Low power consumption

• Minimal external component requirement

• Suitable for digital panel meter applications

• TQFP-44 surface mount package

Specifications -

• Product type - Analog to Digital Converter IC

• Model - ICL7107

• Converter type - Dual Slope ADC

• Display support - 3½ Digit LED Display

• Display driver - Integrated LED Driver

• Resolution - 2000 Counts

• Package type - TQFP-44

• Mounting type - Surface Mount Device

• Input type - Differential Analog Input

• Application - Digital Measurement and Display Systems

Applications -

• Digital voltmeters

• Panel meter displays

• Electronic test equipment

• Industrial monitoring systems

• Measurement instruments

• Power supply monitoring

• Embedded display systems
