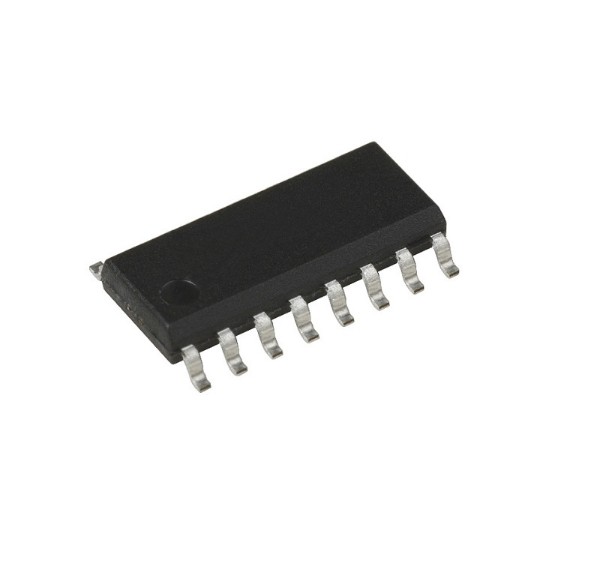

ILX232 150MIL IK SOIC-16 RS-232 Line Driver and Receiver IC (ILX232)
₹ 23.60 (Inclusive of 18.00% GST)
Base Price: ₹ 20.00 | GST (18.00%): ₹ 3.60
Out of Stock
Secure payments powered by Razorpay




Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email
ILX232 150MIL IK SOIC-16 RS-232 Line Driver and Receiver IC (ILX232)
The ILX232 is an RS-232 communication interface IC designed for serial data communication, voltage level conversion, and embedded communication systems. It integrates line drivers and receivers with internal charge pump circuitry, making it suitable for microcontroller interfacing, industrial communication equipment, and serial port applications.
Key Features -
- RS-232 line driver and receiver IC
- Integrated transmitters and receivers
- Internal charge pump voltage converter
- SOIC-16 150MIL surface mount package
- Low power serial communication operation
Specifications -
- IC type / Product type - RS-232 Interface IC
- Logic family / Component type - Communication Interface IC
- Package type - SOIC-16 150MIL SMD IC
- Supply voltage - Approx 5V DC operation
- Input voltage - TTL or CMOS compatible logic input levels
- Output voltage - RS-232 compatible output voltage levels
- Current rating - Low power communication operation
- Frequency / propagation delay - High speed serial data communication support
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Dual RS-232 drivers and receivers, internal charge pump support, low power operation, ESD protection support, full duplex serial communication capability
Applications -
- RS-232 serial communication systems
- Microcontroller interfacing circuits
- Industrial automation equipment
- Embedded communication systems
- Computer serial port interfaces
Pinout Configuration -
- Pin 1 - Charge pump capacitor connection
- Pin 2 - Receiver input pin
- Pin 3 - Transmitter output pin
- Additional pins - TTL logic interface pins, RS-232 communication pins, power supply pin, ground connection, charge pump capacitor pins
