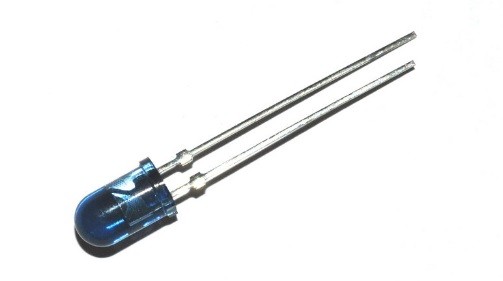

Infrared LED 5mm 940nm Everlight IR333-3B IR Receiver Photodiode Clear Lens Radial (IR333-3B Receiver)

The Everlight IR333-3B is a 5mm infrared receiver device designed to detect IR signals typically around 940nm wavelength. It is used with IR emitters in sensing and communication systems and provides reliable detection performance in optical circuits.

Key Features -

• Infrared detection wavelength approx 940nm
• Standard 5mm radial through hole package
• High sensitivity to IR radiation
• Clear or dark lens depending on variant
• Fast response time for signal detection
• Compatible with IR emitters and modules

Specifications -

• Peak sensitivity wavelength - approx 940nm
• Operating voltage - approx 2.8V to 5V
• Output type - photodiode current response
• Viewing angle - approx 30 to 40 degree
• Package type - 5mm radial through hole
• Operating temperature - approx -25 to 85 degree C

Applications -

• IR remote control receivers
• Object detection and proximity sensing
• Line tracking and obstacle detection systems
• Optical switching circuits
• Automation and robotics systems

Pinout Configuration -

• Anode - positive terminal
• Cathode - negative terminal

Working Principle -

The IR333-3B receiver works by detecting infrared light and converting it into electrical current. When IR radiation falls on the photodiode junction it generates charge carriers which produce a current proportional to the light intensity. This signal is then processed by external circuits for detection and control applications.
