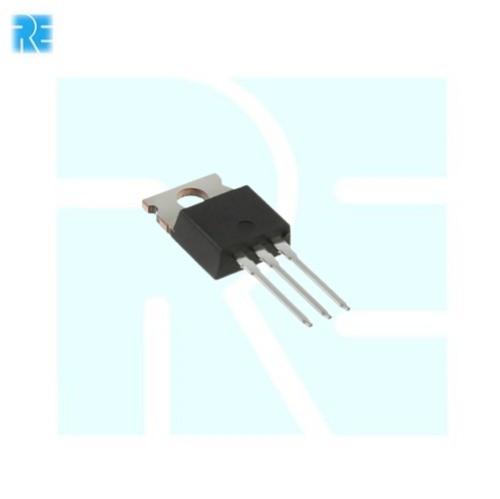

IRF530 N Channel Power MOSFET TO220 Switching Transistor (IRF530 MOSFET)

The IRF530 N Channel MOSFET is designed for high speed switching and power control applications in SMPS circuits, motor drivers, inverters, and industrial electronics. It provides efficient switching performance and reliable power handling in a TO220 package.

Key Features -

• N channel power MOSFET

• TO220 through hole package

• High speed switching performance

• Low ON resistance characteristics

• Suitable for power control applications

• Reliable thermal performance

Specifications -

• Product type - Power MOSFET

• Model - IRF530

• MOSFET type - N channel enhancement mode

• Package type - TO220 package

• Mounting type - Through hole mounting

• Drain source voltage - Approx 100V

• Continuous drain current - Approx 14A

• Gate threshold voltage - Approx 2V to 4V

• Power dissipation - Approx 88W

• Operating temperature - Approx minus 55 degree C to plus 150 degree C

• Additional features - Fast switching, low gate drive requirement, efficient power operation

Applications -

• SMPS power supplies

• Motor control circuits

• DC DC converters

• Inverter circuits

• Industrial electronics
