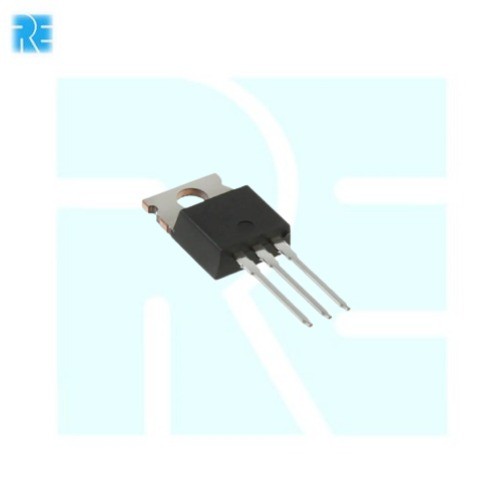

IRF630 N Channel Power MOSFET TO 220 (200V, 9A, 75W, 1 Qty)
The IRF630 is an N Channel enhancement mode power MOSFET designed for high speed switching and power control applications. Featuring a 200V drain source voltage rating, continuous drain current of up to 9A and maximum power dissipation of 75W, this MOSFET is suitable for switched mode power supplies, motor control circuits and DC DC converters. Its fast switching characteristics and voltage controlled gate operation make it useful in power electronics applications. The TO 220 through hole package supports convenient PCB mounting and heatsink installation for improved thermal management.
Key Features
• N Channel enhancement mode power MOSFET
• 200V drain source voltage rating
• Continuous drain current up to 9A
• Maximum power dissipation of 75W
• Fast switching performance
• Voltage controlled gate operation
• Suitable for power switching applications
• TO 220 through hole package
