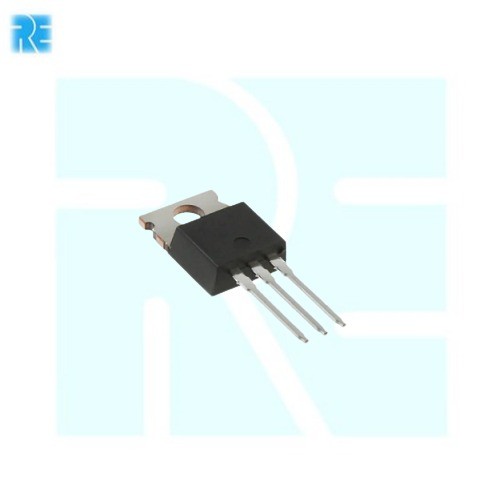

IRFZ48N N Channel Power MOSFET TO 220 (55V, 64A, 1 Qty)




Collect upto 7:30 PM (Mon – Sat)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
IRFZ48N N Channel Power MOSFET TO 220 (55V, 64A, 1 Qty)
The IRFZ48N is an N Channel enhancement mode power MOSFET designed for high current switching and power control applications. Featuring a 55V drain source voltage rating, continuous drain current of up to 64A and low ON resistance, this MOSFET is suitable for motor drivers, switching power supplies, DC DC converters and inverter circuits. Its fast switching characteristics and voltage controlled gate operation support efficient power management in electronic systems. The TO 220 through hole package allows convenient PCB mounting and heatsink installation for improved thermal management.
Key Features
• N Channel enhancement mode power MOSFET
• 55V drain source voltage rating
• Continuous drain current up to 64A
• Low drain source ON resistance
• Fast switching performance
• Maximum gate source voltage of ±20V
• High current power switching capability
• TO 220 through hole package
