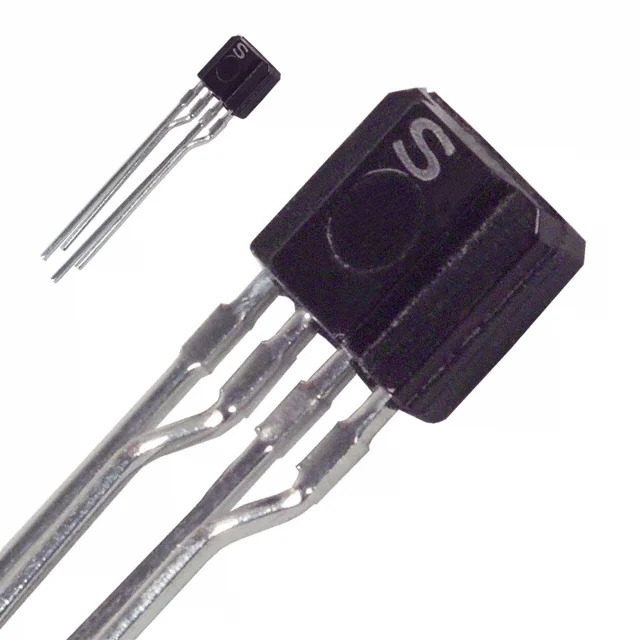

IS471FE Infrared Light Detector OPIC Sensor 940nm Logic Output Radial (IS471FE SHARP)
The IS471FE is an OPIC optical sensor with built in signal processing designed for infrared detection systems. It integrates a photodetector amplifier oscillator and comparator in a single package for reliable object detection using modulated IR light.
Key Features -
- Built in signal processing circuit for light modulation system
- High immunity to external ambient light interference
- Integrated oscillator and detector circuit
- Logic output for direct interface with digital circuits
- Wide operating supply voltage range approx 4.5V to 16V
- Compact radial lead package
Specifications -
- Detection wavelength - approx 940nm
- Supply voltage - approx 4.5V to 16V
- Supply current - approx 3.5mA typical
- Output type - digital logic output
- Package type - radial 4 pin
- Operating temperature - approx -25 to 60 degree C
Applications -
- Object detection and proximity sensing
- Optical switches and interrupters
- Printers copiers and automation systems
- IR based counting and detection systems
- Industrial automation and robotics
Pinout Configuration -
- VCC - power supply input
- VO - signal output
- GND - ground
- GL - LED drive output for IR emitter
Working Principle -
The IS471FE operates using a modulated infrared detection method. It drives an external IR LED through the GL output and detects reflected IR signals using an internal photodetector. The built in demodulator filters ambient light and outputs a clean digital signal when IR reflection is detected. This improves noise immunity and ensures stable detection in varying lighting conditions.
