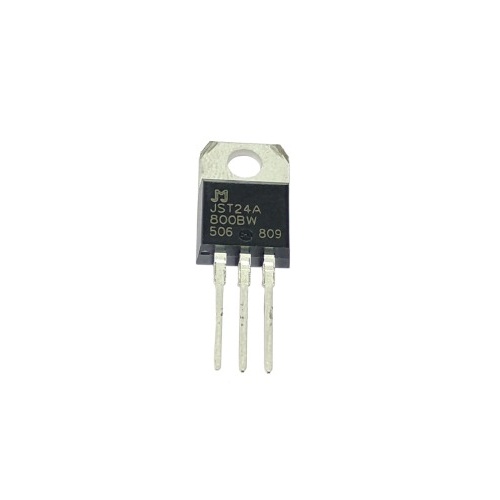

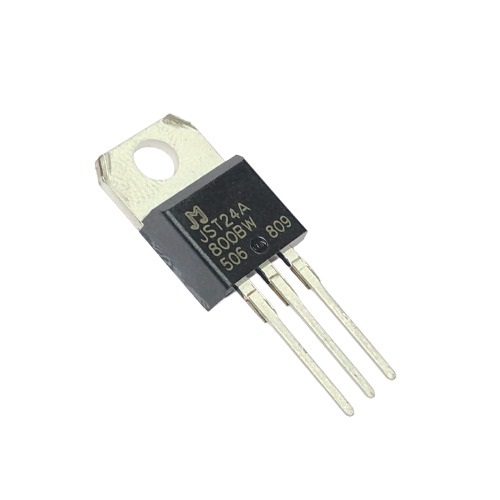

JST24A 800BW 25 Amp Triac TO-220B Package JJM (800V 25A Thyristor Through Hole)

The JST24A 800BW 25 Amp Triac by JJM is a high-performance bidirectional thyristor designed for efficient AC power control and switching applications. Featuring an 800V repetitive off-state voltage, 25A RMS current rating, and a TO-220-3 through-hole package, this TRIAC is ideal for motor speed control, lighting dimmers, heating controllers, solid-state relays, and industrial power control circuits.

Key Features -

• JST24A 800BW TRIAC from JJM

• 800V repetitive off-state voltage

• 25A RMS on-state current rating

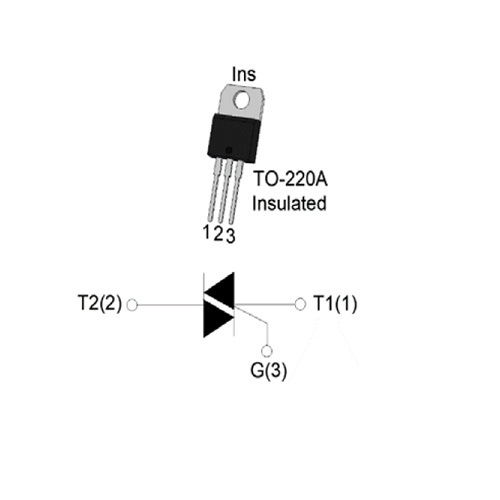

• TO-220-3 through-hole package

• Low gate trigger voltage of 1.3V

• Gate trigger current of 50mA

• Bidirectional AC switching capability

• Wide operating temperature range

• Suitable for high-power AC control applications

• Easy Printed Circuit Board mounting

Specifications -

• Product Type - TRIAC

• Brand - JJM

• Part Number - JST24A 800BW

• Device Type - Thyristor

• Repetitive Off-State Voltage (VDRM) - 800V

• Off-State Voltage - 800V

• RMS On-State Current (IT(RMS)) - 25A

• Gate Trigger Voltage (VGT) - 1.3V

• Gate Trigger Current (IGT) - 50mA

• Minimum Operating Temperature - -40°C

• Maximum Operating Temperature - +125°C

• Mounting Type - Through Hole

• Package Type - TO-220-3

• Packaging - Tube

Applications -

• AC motor speed controllers

• Light dimmer circuits

• Electric heater controllers

• Solid-state relays

• Home appliance control

• Industrial automation equipment

• Power switching circuits

• Fan speed regulators

• AC load control systems

• Printed Circuit Board power control applications
