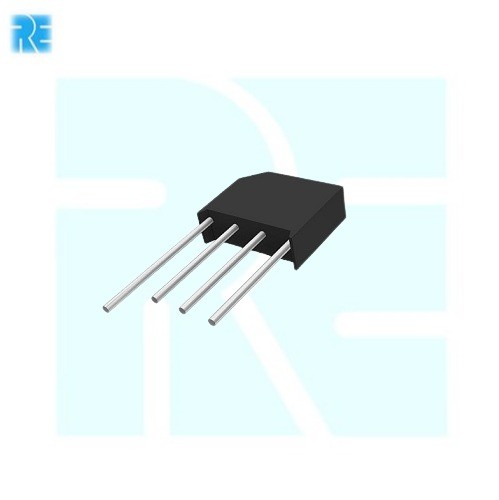

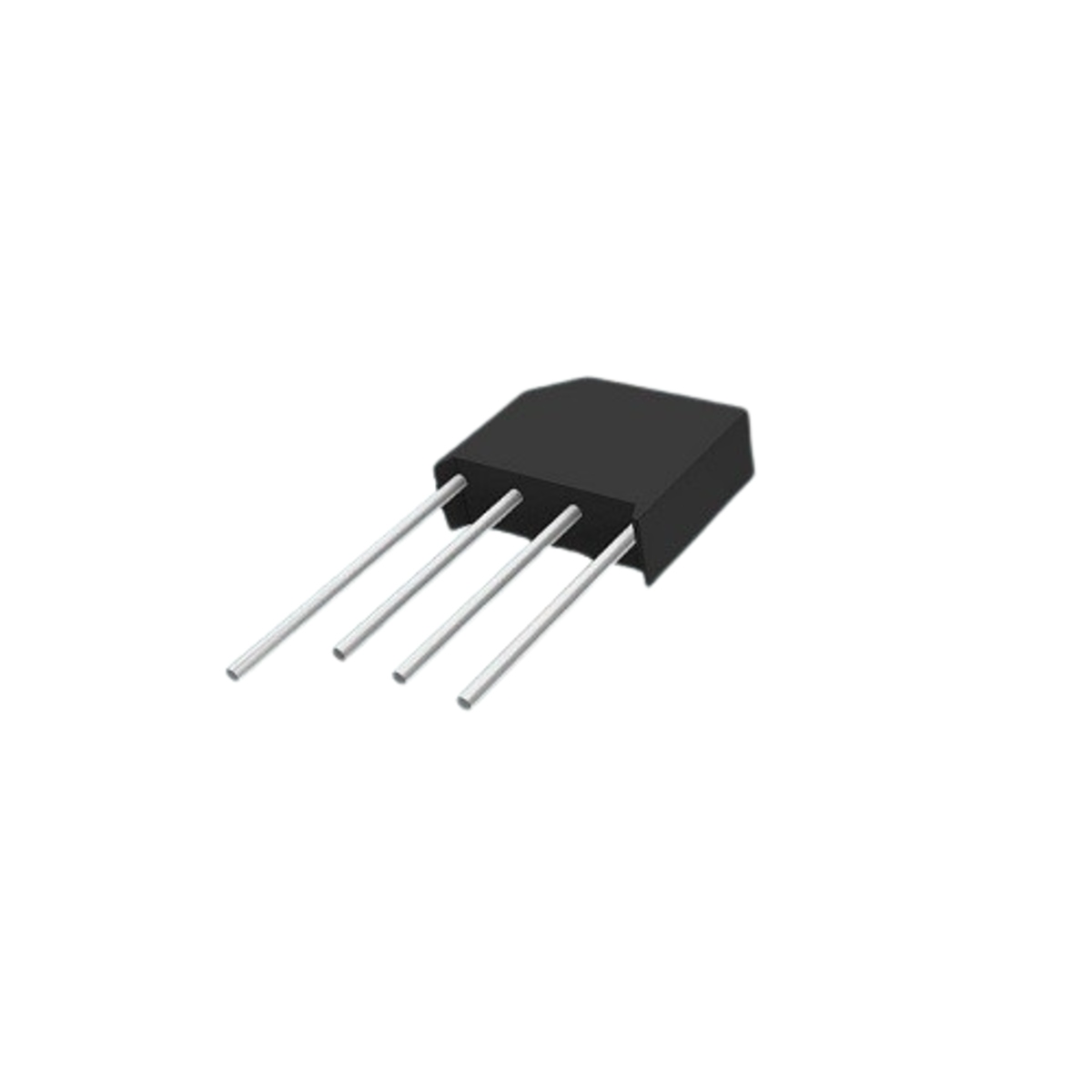

KBL10 Bridge Rectifier 4A 1000V (Single Phase Bridge Rectifier)

The KBL10 Bridge Rectifier is a high-quality single-phase full-wave bridge rectifier designed for efficient AC to DC conversion in power supply and rectification applications. Rated for a maximum average forward current of 4A and a peak reverse voltage of 1000V, it is suitable for battery chargers, SMPS, power adapters, LED power supplies, industrial control systems, and general electronic equipment.

Housed in a durable KBL package, the rectifier offers reliable performance, high surge current capability, and efficient heat dissipation, making it ideal for continuous operation in commercial and industrial applications.

Key Features -

• Single-phase full-wave bridge rectifier

• Maximum average forward current of 4A

• Peak reverse voltage of 1000V

• High surge current capability

• Low forward voltage drop

• Reliable AC to DC conversion

• Durable KBL package

• Suitable for continuous operation

• Easy through-hole mounting

Specifications -

• Product Type: Bridge Rectifier

• Model: KBL10

• Package: KBL

• Rectifier Type: Single-Phase Full-Wave Bridge Rectifier

• Maximum Average Forward Current: 4A

• Peak Reverse Voltage: 1000V

• Mounting Type: Through Hole

• Number of Pins: 4

Applications -

• AC to DC power supplies

• Battery chargers

• Switching mode power supplies (SMPS)

• LED power supplies

• Industrial control equipment

• Power adapters

• Motor control circuits

• DIY electronic projects
