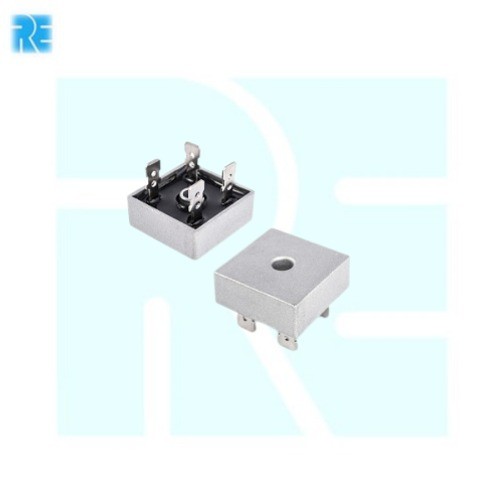

KBPC2510 Bridge Rectifier 25A 1000V (Single Phase Bridge Rectifier)

The KBPC2510 Bridge Rectifier is a high-current single-phase full-wave bridge rectifier designed for efficient AC to DC conversion in power supplies and industrial electronic applications. Rated for a maximum average forward current of 25A and a peak reverse voltage of 1000V, it is ideal for switching mode power supplies, battery chargers, welding machines, motor drives, UPS systems, inverters, and industrial power equipment. The KBPC package features a metal base for efficient heat dissipation and can be mounted directly to a heatsink for improved thermal performance.

Key Features -

• Single-phase full-wave bridge rectifier

• Maximum average forward current of 25A

• Peak reverse voltage of 1000V

• High surge current capability

• Low forward voltage drop

• Durable KBPC package with metal base

• Efficient heat dissipation

• Reliable AC to DC conversion

• Suitable for continuous operation

Specifications -

• Product Type: Bridge Rectifier

• Model: KBPC2510

• Package: KBPC

• Rectifier Type: Single-Phase Full-Wave Bridge Rectifier

• Maximum Average Forward Current: 25A

• Peak Reverse Voltage: 1000V

• Maximum Surge Forward Current: 300A

• Mounting Type: Through Hole with Screw Mount

• Number of Pins: 4

Applications -

• AC to DC power supplies

• Switching mode power supplies (SMPS)

• Battery chargers

• Industrial power supplies

• Motor drive circuits

• Welding equipment

• UPS and inverter systems

• LED power supplies

• DIY power electronics
