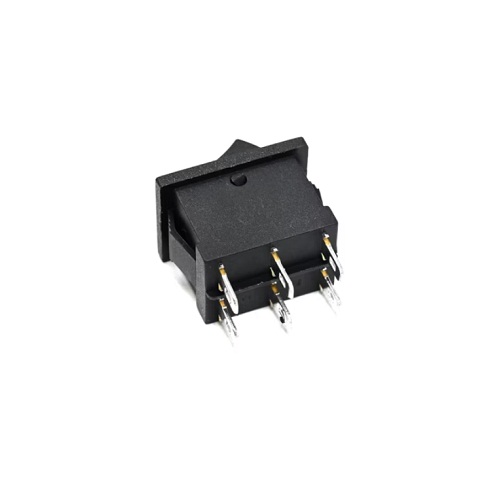

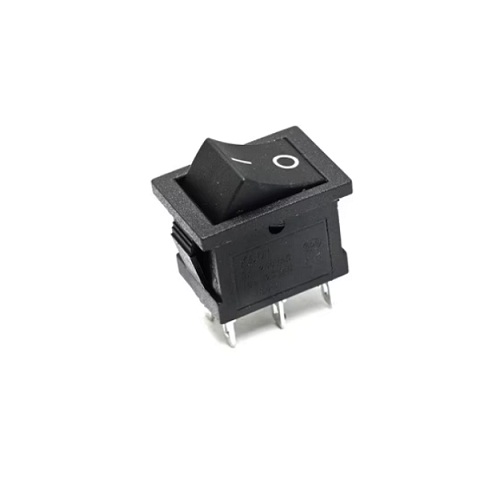

KCD1-1-202 Double Rocker Switch 6-Pin (ON-ON) – Black

KCD1-1-202 Double Rocker Switch 6-Pin (ON-ON) – Black

The KCD1-1-202 Double Rocker Switch is a high-quality 6-pin DPDT (Double Pole Double Throw) rocker switch designed for reliable power control and signal switching applications. Featuring an ON-ON maintained switching mechanism, durable Nylon 66 construction, and silver-plated brass terminals, it is ideal for industrial equipment, power supplies, automotive electronics, control panels, appliances, and DIY electronic projects.

Key Features -

• DPDT (Double Pole Double Throw) rocker switch

• Maintained ON-ON switching operation

• Durable Nylon 66 housing and actuator

• Silver-plated brass terminals for excellent conductivity

• Compact panel-mount design

• High mechanical and electrical life

• Suitable for AC power and control circuits

• Black rocker actuator for professional appearance

Specifications -

• Product Type - Rocker Switch

• Model - KCD1-1-202

• Switch Type - DPDT (Double Pole Double Throw)

• Contact Configuration - ON-ON

• Number of Pins - 6

• Rated Current - 10A @ 125VAC, 6A @ 250VAC

• Housing Material - Nylon 66

• Button Material - Nylon 66

• Button Color - Black

• Terminal Material - Brass with Silver Plating

• Contact Resistance - 50mΩ Max

• Insulation Resistance - 100MΩ Minimum (500VDC)

• Dielectric Strength - 1500VAC for 1 Minute

• Operating Temperature - -25°C to +85°C

• Electrical Life - ≥10,000 Cycles

• Mechanical Life - ≥100,000 Cycles

• Mounting Type - Panel Mount

Applications -

• Industrial control panels

• Power supply equipment

• Electrical appliances

• Automotive and marine electronics

• Audio and communication equipment

• Laboratory instruments

• DIY electronics projects

• General-purpose AC switching applications
