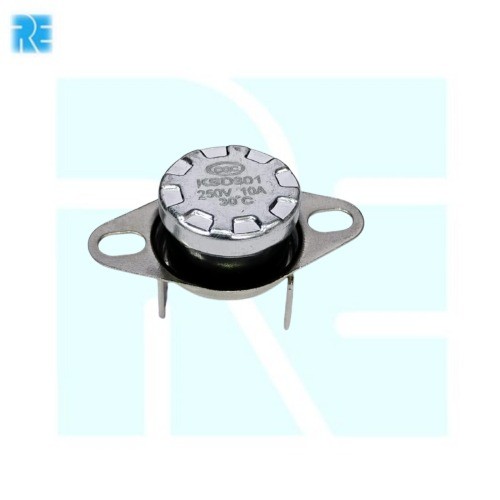

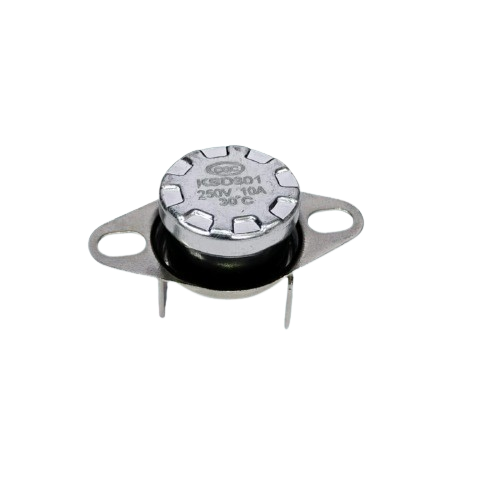

KSD301 30C Normally Closed NC Temperature Control Switch Thermostat 250V 10A

The KSD301 30C Normally Closed (NC) Temperature Control Switch is a reliable bimetal thermostat designed for automatic temperature protection and control in electrical and electronic equipment. Rated for 250V AC and 10A, it features normally closed contacts that open automatically when the temperature reaches 30C, disconnecting the circuit to prevent overheating. Once the temperature drops below the reset point, the contacts automatically close, restoring normal operation.

Its compact metal body and insulated terminals make it suitable for home appliances, heating equipment, battery chargers, power supplies, motors, transformers, and industrial control systems.

Key Features -

• Normally Closed (NC) thermostat

• Opens at 30C temperature

• Rated for 250V AC operation

• Maximum switching current of 10A

• Automatic reset after cooling

• Reliable bimetal temperature sensing

• Compact and durable metal construction

• Easy screw mounting

• Long service life

Specifications -

• Product Type: Temperature Control Switch Thermostat

• Model: KSD301

• Contact Type: Normally Closed (NC)

• Rated Temperature: 30C

• Rated Voltage: 250V AC

• Rated Current: 10A

• Switching Element: Bimetal Disc

• Reset Type: Automatic Reset

• Mounting Type: Screw Mount

• Terminal Type: Quick Connect Terminals

Applications -

• Water heaters

• Electric fans

• Battery chargers

• SMPS and power supplies

• Electric motors

• Transformers

• Heating equipment

• Industrial control systems

• Over-temperature protection circuits
