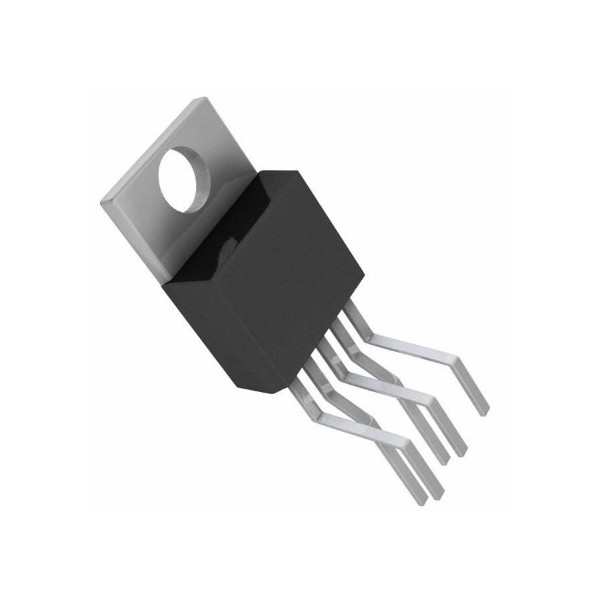

L200C Adjustable Voltage and Current Regulator IC (5 Pin Pentawatt)

The L200C is an adjustable voltage and current regulator IC from STMicroelectronics. It allows the output voltage and current limit to be set using external resistors, making it suitable for regulated power supplies, battery charging circuits, and current controlled applications. Integrated protection features help protect the device against overload and excessive temperature. <Cite refs={["turn195951search1","turn195951search15"]}/>

Key Features -

• Adjustable output voltage and current regulation

• Output current capability up to 2A under specified operating conditions

• Adjustable output voltage from 2.85V to 36V

• Internal current limiting and power limiting

• Thermal overload protection

• Short circuit protection

• Input overvoltage protection for specified transient conditions

Specifications -

• Part Number: L200C

• Manufacturer: STMicroelectronics

• Component Type: Adjustable Voltage and Current Regulator

• Output Voltage Range: 2.85V to 36V

• Output Current: Up to 2A under specified conditions

• Maximum DC Input Voltage: 40V

• Peak Input Voltage: Up to 60V for 10 ms

• Package: Pentawatt 5 Pin or TO 3, depending on the exact variant

Applications -

• Adjustable regulated power supplies

• Constant current source circuits

• Battery charging circuits

• Laboratory power supply designs

• LED current regulation

• Electronic test equipment
