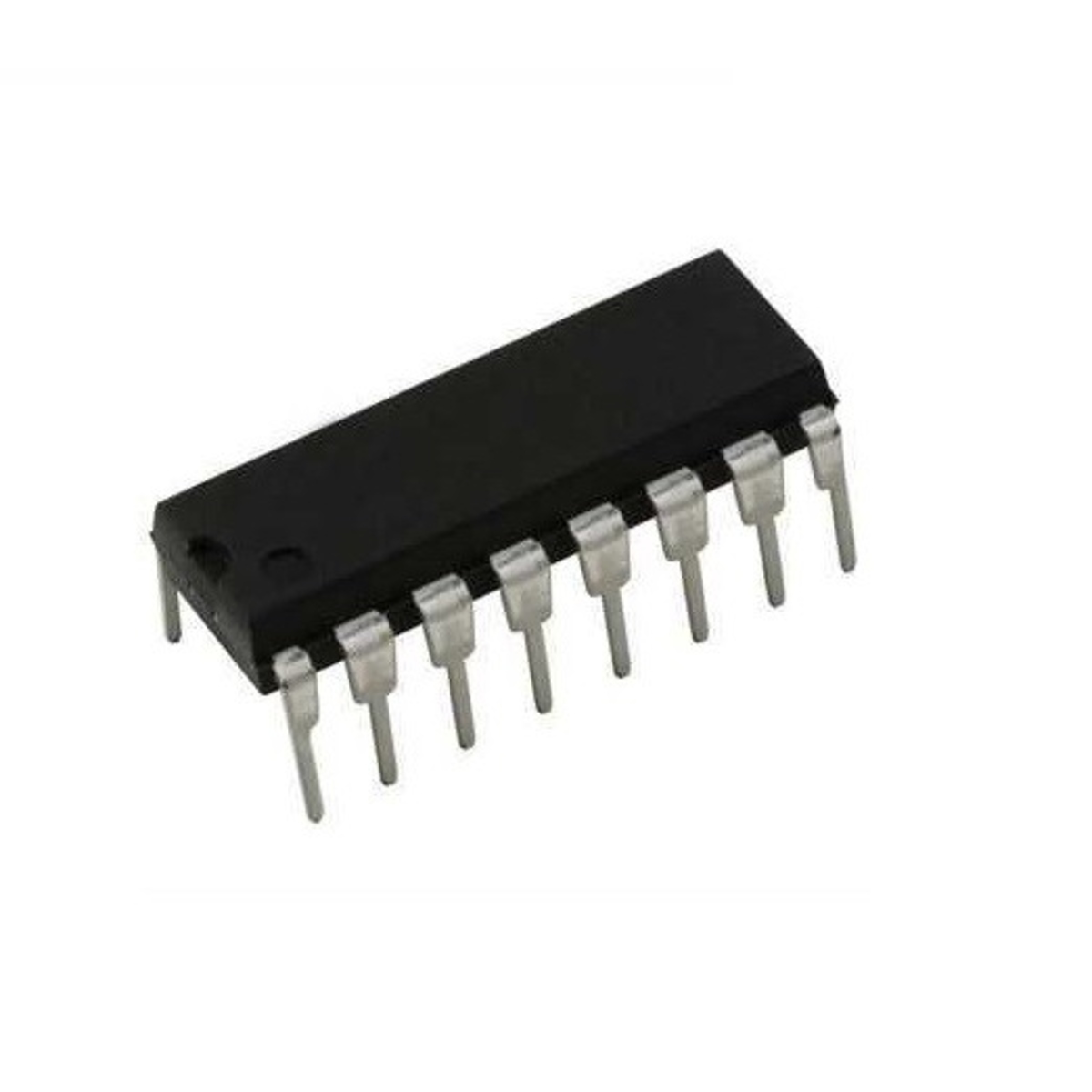

L293D Motor Driver IC (DIP 16, Dual H Bridge)

The L293D is a four channel motor driver IC designed to control DC motors, stepper motors, relays, and other inductive loads. It contains two H bridge driver circuits that allow bidirectional control of two DC motors or control of a bipolar stepper motor. The IC includes internal clamp diodes for inductive load protection and separate logic and motor supply connections.

Key Features -

• Dual H bridge motor driver architecture

• Four half bridge driver channels

• Output current capability of 600 mA per channel

• Peak output current of 1.2 A per channel under specified conditions

• Supports bidirectional DC motor control

• Separate logic and motor supply inputs

• Internal clamp diodes for inductive load protection

• Enable inputs for independent channel pair control

• Integrated overtemperature protection

Specifications -

• Part Number: L293D

• Manufacturer: STMicroelectronics

• Component Type: Motor Driver IC

• Number of Driver Channels: 4

• Output Current: 600 mA per channel

• Peak Output Current: 1.2 A per channel, non repetitive

• Motor Supply Voltage: 4.5V to 36V

• Logic Supply Voltage: 4.5V to 7V

• Package: 16 Pin Plastic DIP

Applications -

• DC motor speed and direction control

• Bipolar stepper motor control

• Robotics and automation projects

• Arduino and microcontroller motor control

• Relay and solenoid driving

• Embedded motion control systems
