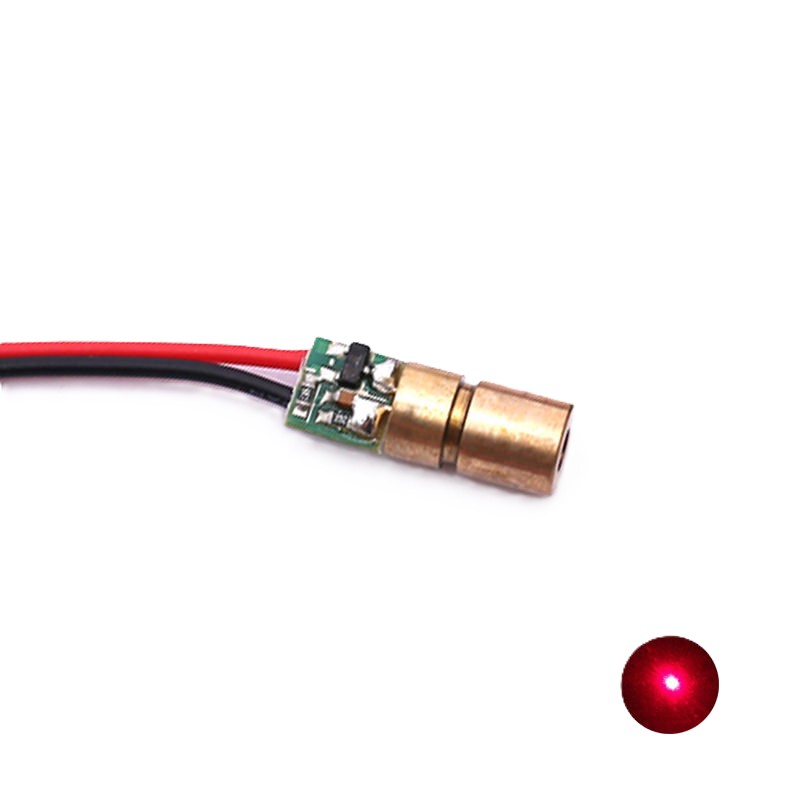

Laser Diode 650nm 3V 5mW Copper Head 6.5mm (650nm Red Laser Diode Module)
The Laser Diode 650nm 3V 5mW Copper Head 6.5mm is a compact semiconductor laser module designed for generating a focused red laser beam for precision applications. It operates at a wavelength of 650nm with an output power of 5mW, delivering a bright and stable visible beam. The copper head construction improves heat dissipation and ensures consistent optical performance during continuous operation.
This laser diode module is widely used in India for embedded systems, alignment tools, optical sensing, and industrial electronics. It is valued for its compact size, low power requirement, and reliable performance in applications such as positioning, targeting, and laser based detection systems.
Key Features
- 650nm Red Laser Output: Bright visible beam for precision use
- 5mW Output Power: Stable and controlled emission
- Copper Head Design: Better heat dissipation and durability
- Low Voltage Operation: Works on 3V supply
- Compact 6.5mm Size: Easy PCB and module integration
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Device Type: Laser diode module
- Wavelength: 650nm red spectrum
- Output Power: 5mW
- Operating Voltage: 3V
- Operating Current: Low current operation
- Diameter: Approx 6.5mm
- Housing Material: Copper head casing
- Beam Type: Focused dot beam
- Mounting Type: PCB mount or embedded integration
- Applications: Laser alignment positioning systems optical sensing embedded systems industrial electronics
Pinout Configuration Module Layout
- Positive supply pin
- Ground pin
- Laser output aperture for beam emission
