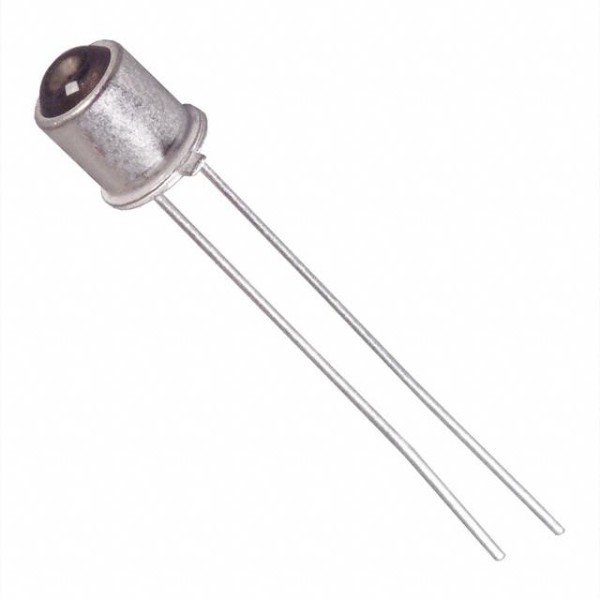

LED55C Infrared Emitter Diode 940nm TO46 (LED55C IR Diode)
The LED55C is an infrared emitting diode, not a photodiode. It is designed using GaAs technology to emit infrared light at a peak wavelength of around 940nm. This makes it ideal for use with phototransistors and photodiodes in optical sensing and communication systems.
It is commonly paired with photodetectors in opto interrupters and reflective sensors, where it acts as the IR light source while another component detects the reflected or interrupted light. The device is housed in a TO-46 metal can package, ensuring durability and precise optical alignment.
Key Features
- 940nm Infrared Emission optimized for IR sensing
- High Radiant Intensity for reliable detection
- Narrow Beam Angle for focused output
- TO-46 Metal Can Package robust and stable
- Fast Switching suitable for high speed applications
- Compatible with photodiodes and phototransistors
Specifications
- Device Type: Infrared emitting diode
- Peak Wavelength: 940nm
- Forward Current: up to 100mA
- Forward Voltage: approx 1.7V
- Viewing Angle: narrow beam output
- Package Type: TO-46 metal can
- Output Type: Infrared optical emission
- Applications: IR communication proximity sensing opto interrupters industrial electronics
Important Note
- LED55C is an IR emitter diode
- It is not a photodiode
- For detection you need a matching photodiode or phototransistor
Pinout Configuration TO46 Layout
- Anode pin
- Cathode pin
- Optical emission window at top
