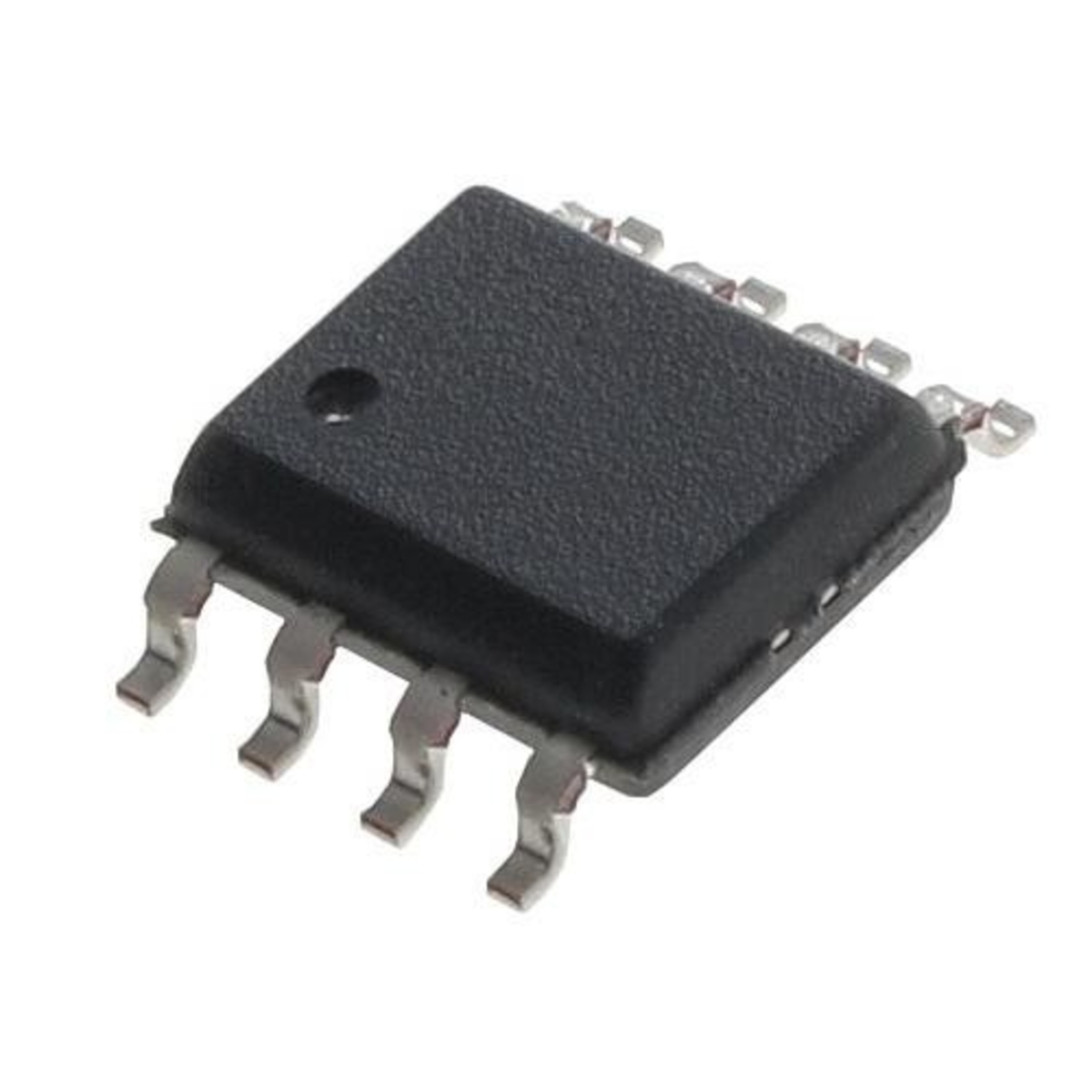

LM301 Operational Amplifier IC SOIC-8 (LM301 Op-Amp IC)

The LM301 is a general-purpose operational amplifier IC designed for signal amplification, active filtering, voltage comparison, and analog processing applications. Known for its versatility and stable performance, the LM301 is widely used in instrumentation, industrial controls, audio circuits, and embedded electronic systems. This version is supplied in a compact SOIC-8 surface mount package for modern PCB designs.

Key Features -

• General-purpose operational amplifier

• High gain differential amplifier

• Wide range of analog applications

• Stable and reliable performance

• Frequency compensation capability

• Low power consumption

• Suitable for signal conditioning circuits

• SOIC-8 surface mount package

Specifications -

• Product type - Operational Amplifier IC

• Model - LM301

• Amplifier type - General Purpose Operational Amplifier

• Number of amplifiers - 1

• Package type - SOIC-8

• Mounting type - Surface Mount Device

• Input type - Differential Input

• Output type - Analog Output

• Application - Signal Amplification and Analog Processing

• Compensation - External Frequency Compensation Supported

Applications -

• Signal amplification circuits

• Active filter designs

• Voltage follower circuits

• Audio electronics

• Instrumentation systems

• Industrial control equipment

• Analog signal conditioning
