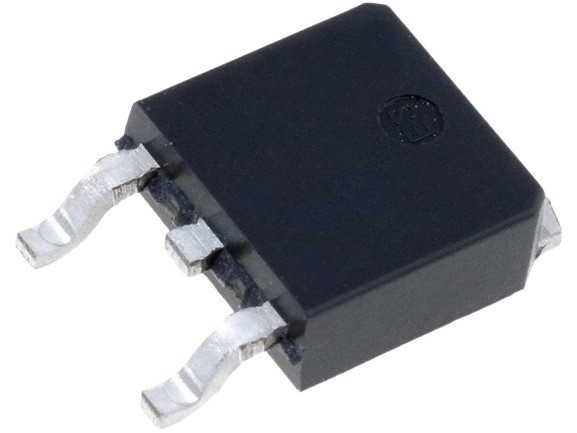

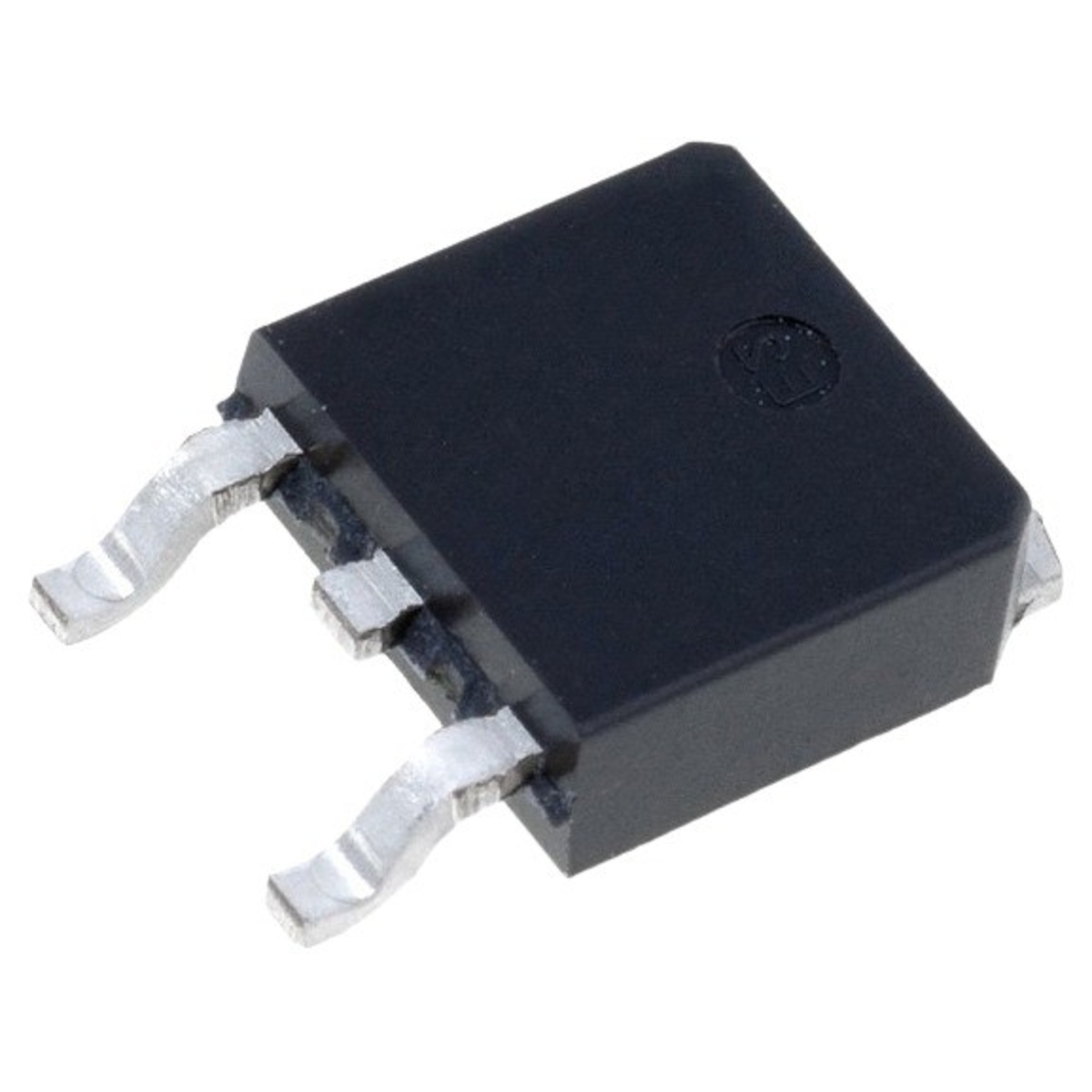

LM317 Adjustable Voltage Regulator IC DPAK SMD (LM317 DPAK IC)

The LM317 is a versatile adjustable positive voltage regulator IC capable of providing a regulated output voltage over a wide range using external resistors. It is widely used in power supplies, battery chargers, voltage regulation circuits, and electronic projects requiring a stable and adjustable DC output. The DPAK surface mount package is suitable for compact PCB designs and efficient thermal performance.

Key Features -

• Adjustable positive voltage regulator

• Wide output voltage adjustment range

• Built-in current limiting protection

• Thermal overload protection

• Good load and line regulation

• Suitable for power management applications

• DPAK surface mount package

• Simple external component requirements

Specifications -

• Product type - Voltage Regulator IC

• Model - LM317

• Regulator type - Adjustable Positive Voltage Regulator

• Package type - DPAK

• Mounting type - Surface Mount

• Output type - Adjustable DC Output

• Protection features - Current Limiting and Thermal Protection

• Regulation type - Linear Voltage Regulation

• Application - Power Supply Regulation

Applications -

• Adjustable power supplies

• Battery charging circuits

• Voltage regulator modules

• Industrial control equipment

• Embedded electronics

• Laboratory power supplies

• Electronic development projects
