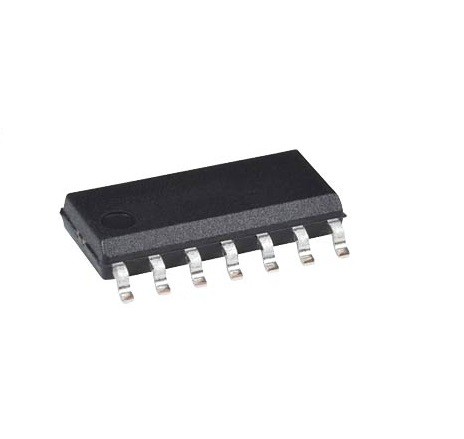

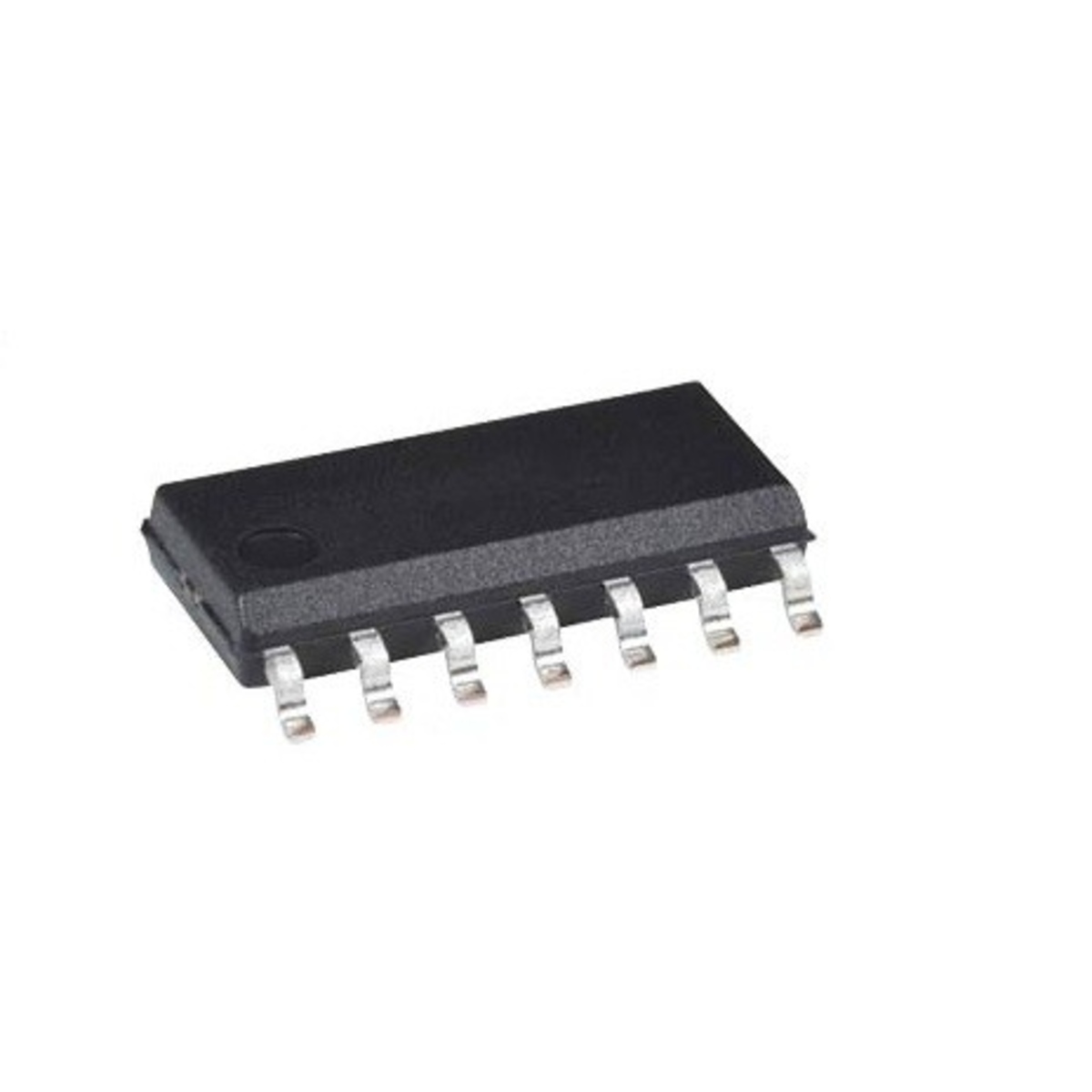

LM319 Dual High Speed Voltage Comparator IC SOIC-14 (LM319 SOIC IC)

The LM319 is a dual high-speed voltage comparator IC designed for precision voltage comparison, signal conditioning, threshold detection, waveform generation, and industrial control applications. It contains two independent high-speed comparators with open-collector outputs, making it suitable for interfacing with TTL, CMOS, and other digital logic systems.

Key Features -

• Dual independent voltage comparators

• High-speed response performance

• Open-collector outputs

• Wide supply voltage operation

• Low propagation delay

• TTL and CMOS logic compatible

• High accuracy voltage comparison

• SOIC-14 surface mount package

Specifications -

• Product type - Voltage Comparator IC

• Model - LM319

• Comparator type - Dual High Speed Comparator

• Number of comparators - 2

• Output type - Open Collector

• Input type - Differential Analog Inputs

• Logic compatibility - TTL and CMOS

• Package type - SOIC-14

• Mounting type - Surface Mount Device

• Application - Voltage Comparison and Signal Detection

Applications -

• Voltage level detection

• Zero crossing detectors

• Signal conditioning circuits

• Pulse and waveform generation

• Industrial control systems

• Sensor interface circuits

• Data acquisition systems

• Embedded electronic projects
