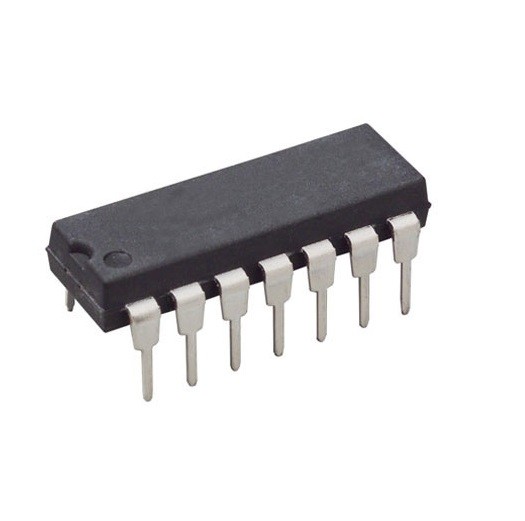

LM324 Quad Operational Amplifier IC (Original, DIP 14 Package)

The original LM324 is a low power integrated circuit containing four independent operational amplifiers in a single package. It operates from a single power supply and supports input voltages that include ground, making it suitable for sensor signal conditioning, amplification, filtering, and analog control circuits.

Key Features -

• Original LM324 integrated circuit

• Four independent operational amplifiers in one package

• Supports single and dual power supply operation

• Input common mode voltage range includes ground

• Low power consumption

• Internally frequency compensated

• Suitable for analog signal processing

Specifications -

• Part Number: LM324

• Product Condition: Original

• Component Type: Quad Operational Amplifier

• Number of Amplifiers: 4

• Single Supply Voltage: Typically 3V to 32V, depending on manufacturer

• Dual Supply Voltage: Typically plus or minus 1.5V to plus or minus 16V

• Package Type: DIP 14

• Number of Pins: 14

Applications -

• Sensor signal amplification

• Active filters

• Voltage followers and buffer circuits

• Signal conditioning systems

• Oscillators and waveform generators

• Analog control circuits

• Embedded systems and electronic instrumentation
