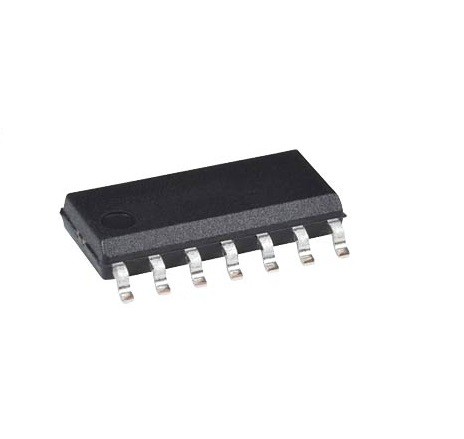

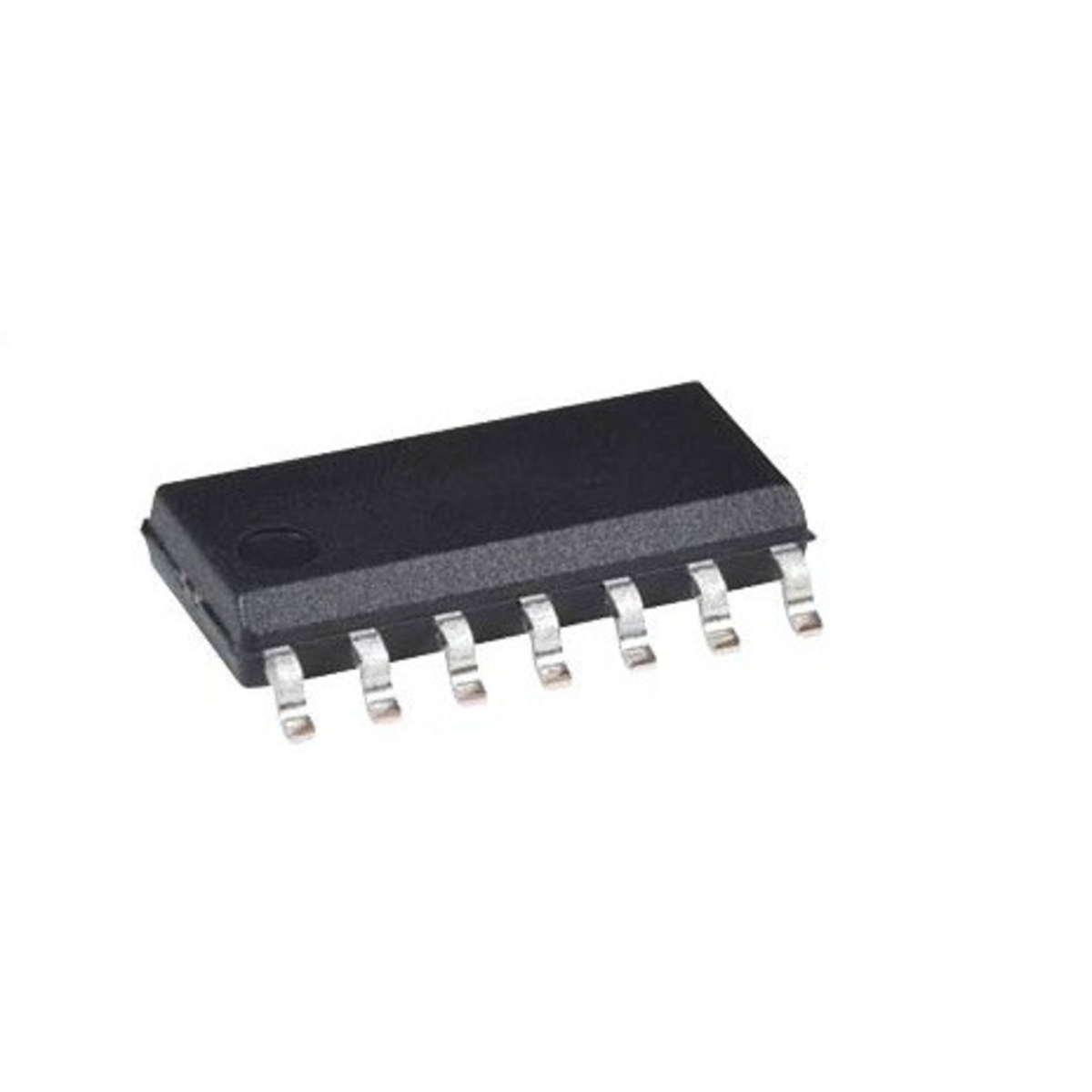

LM324 Quad Operational Amplifier IC SOIC-14 (LM324 SMD Op-Amp IC)

The LM324 is a versatile quad operational amplifier IC that integrates four independent high-gain operational amplifiers in a single package. Designed for single-supply and dual-supply operation, the LM324 is widely used in signal conditioning, sensor interfaces, active filters, voltage comparators, and general-purpose analog circuits. The SOIC-14 package makes it ideal for compact surface-mount PCB designs.

Key Features -

• Four independent operational amplifiers

• Single-supply or dual-supply operation

• Wide operating voltage range

• Low power consumption

• High voltage gain

• Internal frequency compensation

• SOIC-14 surface mount package

Specifications -

• Product type - Operational amplifier IC

• Model - LM324

• Amplifier type - Quad Operational Amplifier

• Number of amplifiers - 4

• Package type - SOIC-14

• Mounting type - Surface Mount Device (SMD)

• Supply voltage - Wide operating range

• Input type - Differential input

• Output type - Analog output

• Additional features - Stable operation, low input bias current, and high reliability

Applications -

• Sensor signal conditioning

• Active filter circuits

• Voltage comparator applications

• Audio processing circuits

• Industrial control systems

• Data acquisition equipment

• Embedded analog electronics
