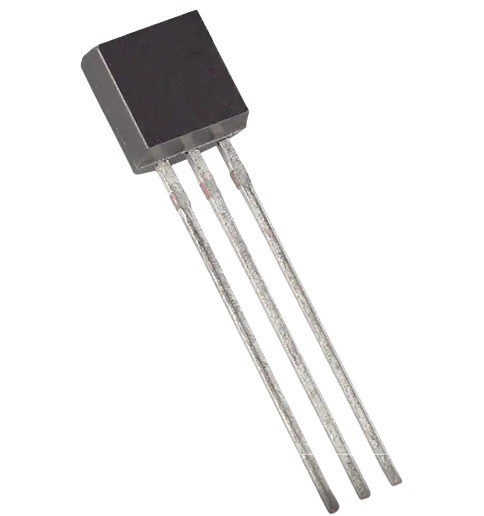

LM329DZ Precision Voltage Reference (TO 92 Package)

The LM329DZ is a precision voltage reference diode designed to provide a stable reference voltage for electronic circuits. It is used in applications that require a consistent voltage reference for measurement, regulation, calibration, and analog signal processing. The TO 92 package supports compact through hole mounting in electronic designs.

Key Features -

• Precision voltage reference diode

• Nominal reference voltage of approximately 6.9V

• Designed for stable voltage reference applications

• Suitable for analog voltage regulation and measurement circuits

• Compact TO 92 package

• Through hole mounting

Specifications -

• Part Number: LM329DZ

• Component Type: Precision Voltage Reference

• Nominal Reference Voltage: Approximately 6.9V

• Package Type: TO 92

• Number of Pins: 3

• Operating Current and Voltage Tolerance: Refer to the exact manufacturer datasheet

Applications -

• Precision voltage reference circuits

• Voltage regulator circuits

• Analog measurement equipment

• Calibration systems

• Instrumentation and control circuits

• Stable reference supplies for analog to digital converters
