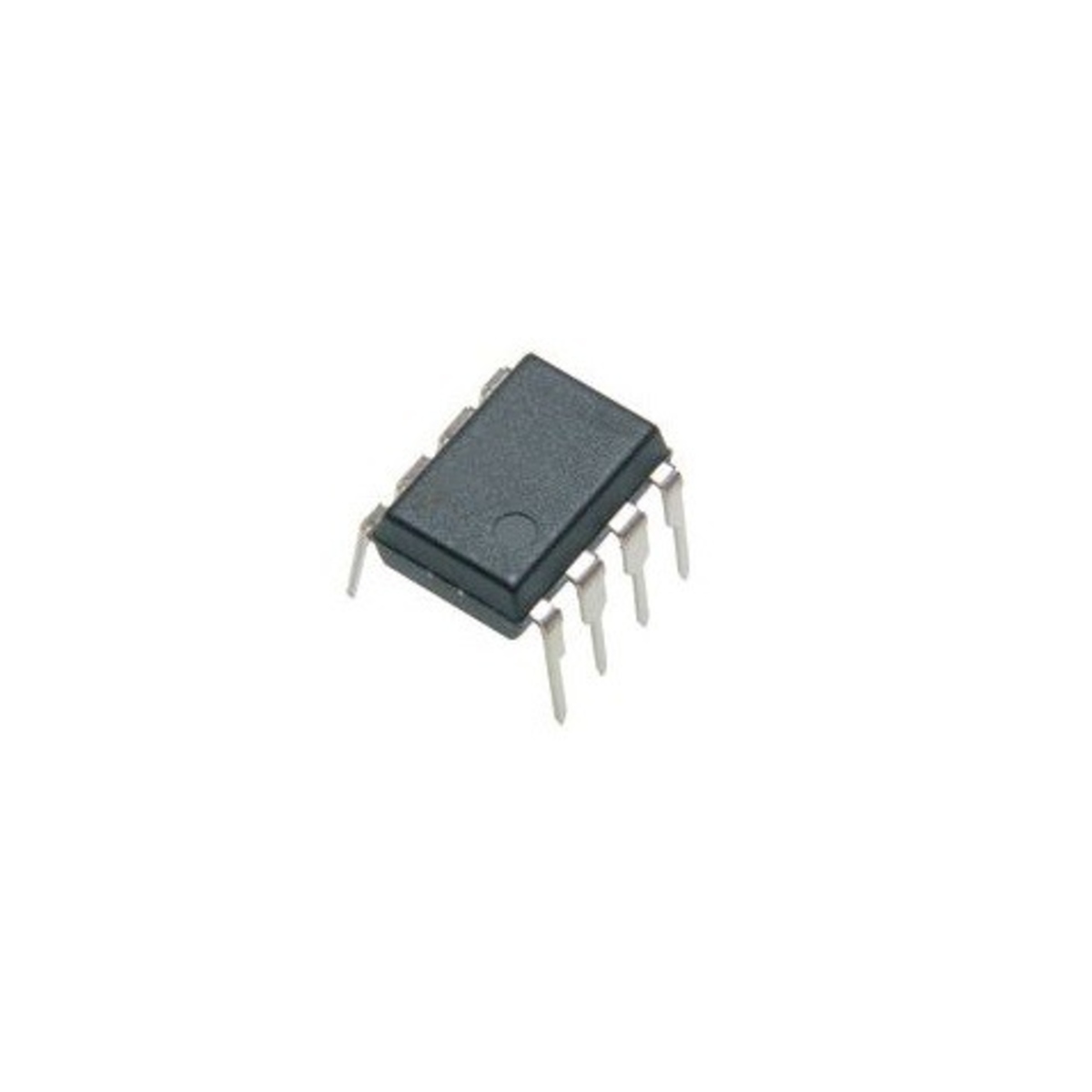

LM331 Precision Voltage to Frequency Converter IC

The LM331 is a precision voltage to frequency converter designed to convert an analog input voltage into a corresponding frequency output. It can also be configured for frequency to voltage conversion using an appropriate external circuit. Its high linearity and stable performance make it suitable for analog signal conversion, measurement systems, and data acquisition applications.

Key Features -

• Precision voltage to frequency conversion

• Supports frequency to voltage conversion with an external circuit

• High linearity over a wide operating range

• Suitable for analog signal processing

• Compatible with digital frequency measurement systems

• Adjustable conversion scaling using external components

Specifications -

• Part Number: LM331

• Component Type: Precision Voltage to Frequency Converter

• Conversion Function: Voltage to Frequency and frequency to voltage with suitable external circuitry

• Output Type: Frequency pulse output

• Supply Voltage: Typically 4V to 40V, depending on manufacturer specifications

• Package Type: Depends on the exact part suffix

• External Components: Required to set conversion scaling and timing

Applications -

• Analog to digital conversion

• Frequency based data transmission

• Voltage and frequency measurement instruments

• Industrial process monitoring

• Sensor signal conversion

• Data acquisition systems

• Frequency to voltage converter circuits
