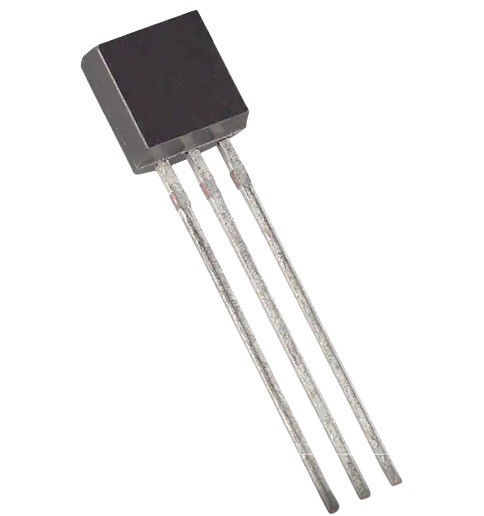

LM335Z Temperature Sensor IC (TO 92 Package)

The LM335Z is a precision temperature sensor that operates as a temperature dependent voltage reference. It produces an output voltage proportional to absolute temperature, making it suitable for temperature measurement, monitoring, and control applications. The TO 92 package supports compact through hole mounting in electronic circuits.

Key Features -

• Precision temperature sensing

• Output voltage proportional to absolute temperature

• Nominal sensitivity of 10 mV per Kelvin

• Requires bias current for operation

• Suitable for analog temperature measurement circuits

• Compact TO 92 package

Specifications -

• Part Number: LM335Z

• Component Type: Precision Temperature Sensor

• Output Sensitivity: 10 mV per Kelvin

• Nominal Output Voltage at 25 C: Approximately 2.98V

• Calibrated Temperature Range: Depends on the manufacturer and variant

• Package Type: TO 92

• Number of Pins: 3

Applications -

• Temperature monitoring systems

• Environmental measurement equipment

• Battery temperature monitoring

• Industrial temperature control

• Thermal protection circuits

• Analog temperature measurement interfaces

• Microcontroller based temperature sensing
